6 Axle Extendable Trailer for Windmill Transport will be shipped to Vietnam
In recent years, Vietnam has vigorously developed offshore wind power construction, and many wind power stations have been established. A month ago, a Vietnamese customer found our TITAN, because he heard that a friend had imported TITAN brand windmill trailers, which worked very well and helped a lot. So hopefully we can make a balde trailer for him to transport the windmill blades. We say that TITAN can certainly provide you with high-quality telescopic trailers, and we have experience with them. So we began to discuss specific models and configurations. According to the customer's actual needs, we recommend him 6 axle extendable lowboy trailer. The customer is also very satisfied that this model is just right for his needs. During the production process, we also provided customers with photos and videos. Let customers supervise our production. Now, the blade trailer is ready to be shipped, and the customer will receive our extendable trailer for blades wind turbine soon.

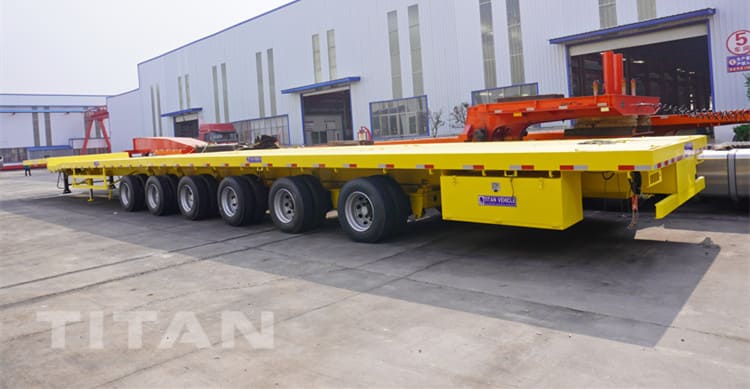

6 Axle Blade Trailer for Blade Wind Turbine will be shipped to Vietnam
TITAN Telescopic trailers for windmill blade transport can have three and four telescopic beams up to a maximum length of 62 meters. Windmill blades up to 80 meters can be transported. At the enclosed length of the telescopic trailer, it can be used as a flatbed trailer.
The suspension of the telescopic trailer adopts mechanical suspension, which can accept overload. Can be air suspension and mechanical suspension. The air suspension is balance capability as it has automatic lift distance. The wind blade trailer of the windmill blade can have three steering modes. One is automatic steering (short distance), one is remote steering, and the last is manual steering. For windmill blade transporters, not only are there extendable flatbed trailers, but we also have extendable hydraulic modular axle trailers, windmill blade adapters and windmill tower adapters.

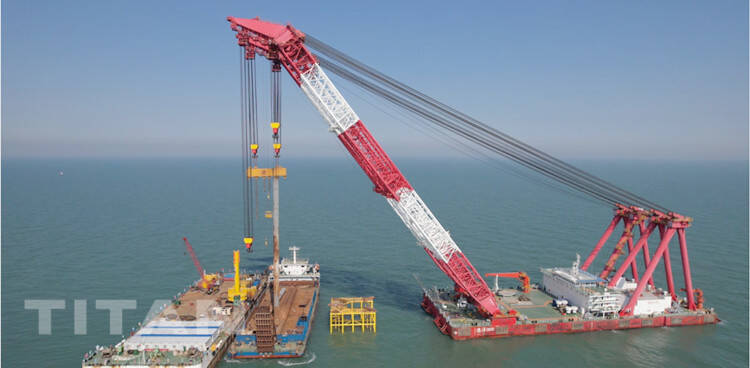

Vietnam Wind Power Plant under Construction
1. Trailer Frame
The extendable trailer frame construction features the main beam, half plates to the left side and the right side and a transverse device. The half plates to the left and right side are linked to the main beam by means of the transverse device. The hydraulic gooseneck is attached to the frame head and a hydraulic ladder fitted at the rear section.
2. The Gooseneck Feature
The assembly and connection at the gooseneck point is usually made to the tractor saddle via the turntable, the wedge and the traction pin. The extendable trailer’s gooseneck feature is a hydraulic part that is usually adjusted through a telescopic expansion of the hydraulic cylinder.
As the tractor rotates, the steering cylinder gets pushed and transmitted to the steering bridge of the trailer via the hydraulic circuit. The steering mechanism towing the extendable trailer is usually attached in the gooseneck.
3. The Hydraulic System
The basic components of the hydraulic system are hydraulic valve blocks, joints and pipes. The entire system comes with a hydraulic source by means of a power unit. There is also a safety valve installed in the circuit.
The wind balde trailer has a hydraulic system that comprises control circuits like the suspension lifting, gooseneck lifting, synchronous steering, lateral adjustment and in lifting the ladder.

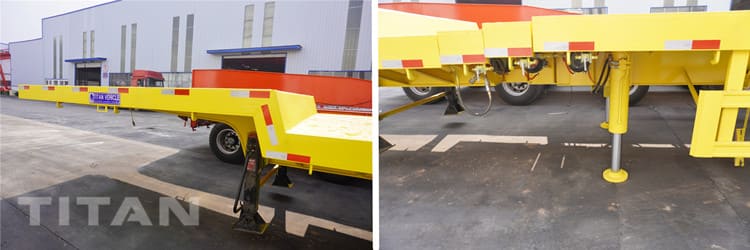

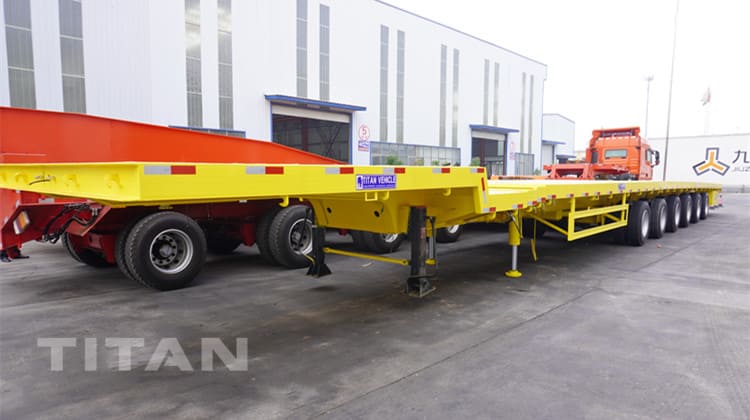

Details of 6 Axle Extendable Trailer for Transporting Blades Wind Turbine
4. The Steering System
The steering system of an telescopic trailer comprises a wheel steering mechanism, gooseneck steering mechanism and a matching hydraulic synchronous control circuit.
The gooseneck steering mechanism makes use of the tractor’s rotation in relation to the trailer in order to contract and expand the steering cylinder in a synchronous manner in relation to the wheelset steering mechanism.
This then drives the axle via the steering rod and the turntable.
5. The Braking System
To further enhance swift operations with the extendable lowboy trailer, a braking system is provided. This includes a service brake, a dual-line automobile brake system and a parking brake.
An emergency relay valve, air reservoir, double-brake chamber and a number of specifications for the components connecting to the pipeline.
The supply and control lines are set separately. The most significant components include a connector attached to the tractor.

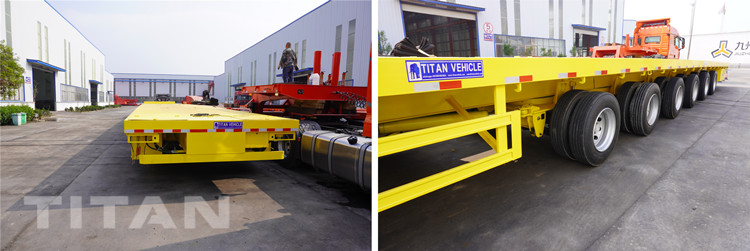

Details of 6 Axle Extendable Trailer for Transporting Blades Wind Turbine
6. The System's Power Unit
The power unit is made up of a small diesel engine, which is the main prime mover. Other components include a hydraulic oil tank, control lines and pipelines, hydraulic pump. The unit offers a hydraulic source for the trailer’s hydraulic system.
7. The Electrical System
A 24V single wire system forms the electrical system of the blade trailer. In totality, the electrical system includes lights, connectors and wires among other components.The electrical connection attached to the tractor chosen is the national standard 24N type electrical connector.
The external signalling and lighting components are usually provided with brake lights, rear position lights and position lights among other as deemed useful for use in this application.
Due to the varying demands of cargo in terms of size, particularly on its length and width, the need for establishing a lasting solution led to the making of extendable trailers for transporting baldes wind turbine. We can also custmize it for you according to your requirement.

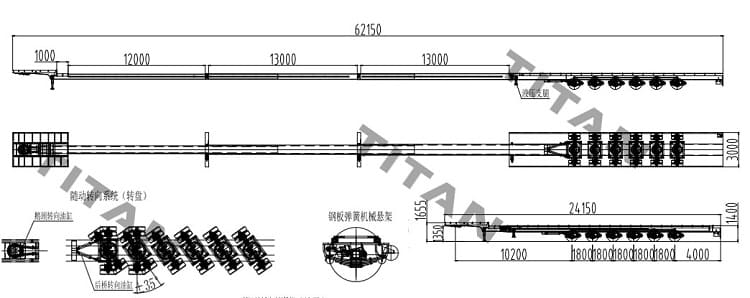

Drawing of 6 Axle Extendable Trailer for Transporting Blades Wind Turbine
