10 Axle Hydraulic Modular Trailer for Sale in Vietnam
Vietnam customers are looking for a manufacturer of modular trailers. To be honest, there are relatively few manufacturers specializing in the production of hydraulic modular trailers, and customers are mainly used to transport part of the ship or the entire ship from the shipyard to the designated location.
Ships are part of the heaviest load transported on the road. After 5 months of discussions and exchanges, we recommend the most suitable hydraulic modular trailer for customers. Professional engineers design drawings according to the actual situation of customers to provide customers with references. The final customer chose TITAN to cooperate.

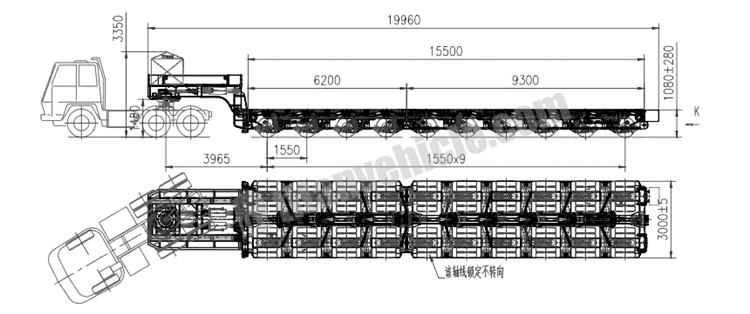

Drawing of 10 Axle Hydraulic Modular Trailer
1. Frame
The main girder of frame has a box-type carrying beam structure. The girder uses high-performance welding steel to ensure stability and reliability.
The surface of the main structure should be treated with sand blasting. The thickness of the painting used on the surface should meet the national standards. The brand of the painting used should be among the top brands in the world. All the small-sized parts of the frame should be zinc-plated.
The box-shaped center beam and the stable crossbeams give the frame a high degree of rigidity. Hence, the frame of modular trailer can achieve its optimal loading level. The steering system, air tank, and hydraulic oil tank are all integrated into the bogie frame. Thus, the parts are protected against damage and corrosion.
The frame has a reinforced loading deck, which allows extreme point loads. The optimized bolt-plate coupling, on the other hand, eliminates any problems that may arise when assembling the longitudinal combinations.
2. Hydraulic Wheel Bogie
The hydraulic modular trailer uses a hydraulic wheel bogie, which consists of the bogie frame, hydraulic cylinder, axle, tyre, and rocker arm. It has a strong load capacity.
When the road is uneven on the transverse direction, the axle swings to compensate. If the road is uneven in the driving direction, the hydraulic lifting system adjusts the modular supporting system. The modular unit can assume 3-point or 4-point supporting system to ensure that each supporting point carries an even load.

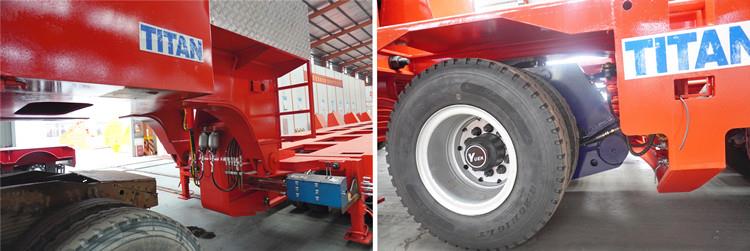

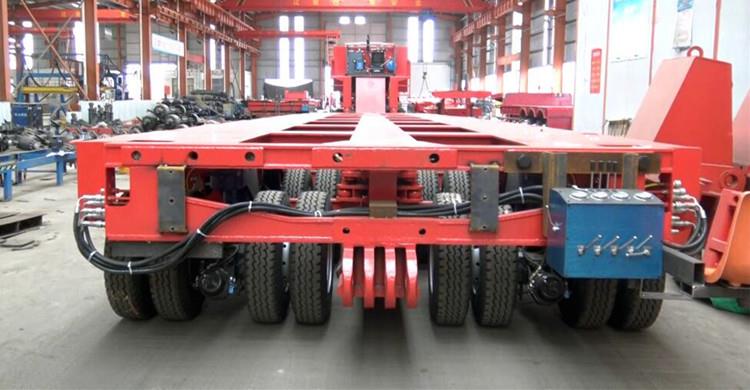

Details of10 Axle Hydraulic Modular Trailer
3. The Mechanism of Steering
The steering mechanism consists of the steering central panel, steering orifice plate, steering cylinders, and steering rods.
The steering orifice plate is welded together with the bogie frame. The plate has specific quantities of assembling holes that are used to install steering rods. The positions where steering rods are installed on the steering orifice plate can be changed to suit different combination modes of the modular unit.
The hydraulic modular trailer uses three major steering modes that include the all wheel steering along (over five axle lines), diagonal steering along, and the front-wheel steering mode. The steering rods can be adjusted quickly and easily to suit the desired steering angle.The modular has a hydro-mechanical all-wheel system with a two-circuit system, which ensures that the steering system maintains its functionality even when one or more steering circuit fails.
4. Hydraulic Suspension
The individual swing axles in a hydraulic modular trailer consist of the hydraulic suspension, which can be connected to different support circuits.
The purpose of connecting the suspension to different circuits is to ensure that the axles have equal loads. When the axles have equal loads, you are guaranteed of the optimal lengthwise and crosswise leveling even if you are driving on uneven terrain. The equal loads also regulate extreme cross falls.

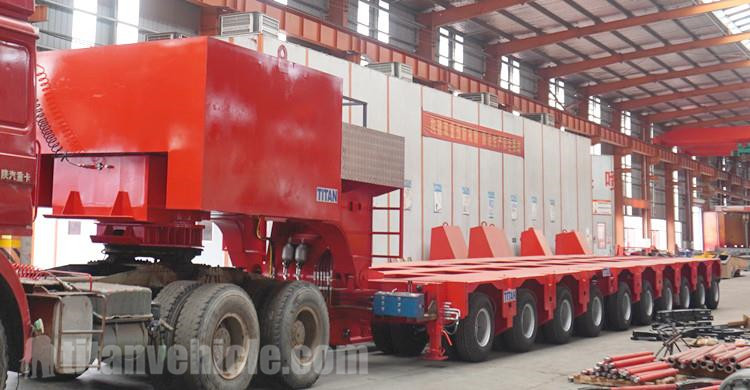

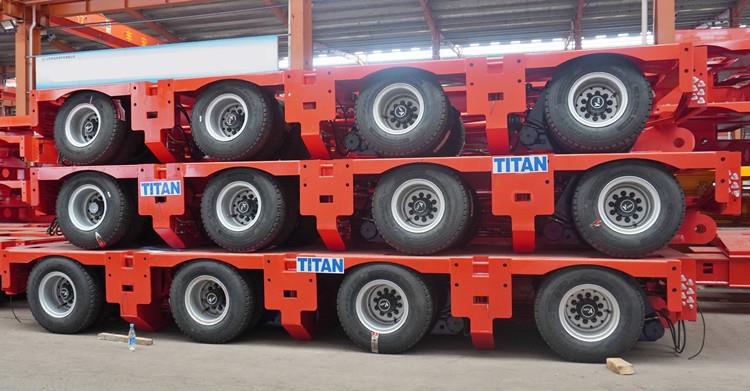

10 Axle Hydraulic Modular Trailer will be sent to Vietnam
5. Lifting System
The total lifting length of modular unit’s platform is 600mm. The platform gives a compensation of ±300mm, which is enough compensation for the axial load.
The suspension cylinder is installed as the steer wheel bogie. The two ends of the suspensions have joint bearings, which protect the cylinder from damages.
The hydraulic accumulator provides good cushioning when the modular transporter is unloaded.
10 Axle Hydraulic Modular Trailer for Sale in Vietnam
