4 Axle 100T Excavator Trailer for Sale in Guyana
Guyana Customers not only fancy TITAN's services but more importantly, TITAN's production process and technology. In 2019, the customer visited the TITAN factory, and the customer said that they would wait until their own factory was built before buying a 4 Axle Excavator Trailers.TITAN's production process and technology are not what every factory can do.
At present, the customer's 4 axle excavator trailers have been completed and packaged and shipped to the customer.
4 Axle 100 Ton Excavator Trailer Price
We provide high-quality semi-trailers, not only in quality service after-sales but also in every aspect. TITAN has more than 20 professional inspectors, in order to help detect whether the completed 4 axle 100 ton excavator trailers are qualified. This is not only about the interests of this Titan, but also about the interests of customers.

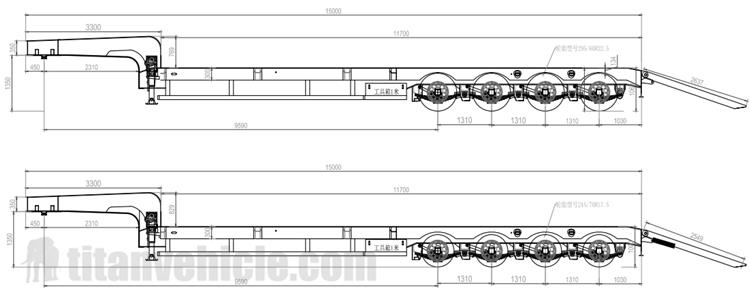

Before production, TITAN technical department must first design and produce drawings according to the needs of the user and the market, so that the technical parameters of the main trailer are matched, and then transferred to the manufacturing department. There are dimensions and specs drawing of different types of excavator trailer. You can learn more details of 4 axle 100t excavator trailer in the pictures.
Before production, TITAN technical department must first design and produce drawings according to the needs of the user and the market, so that the technical parameters of the main trailer are matched, and then transferred to the manufacturing department.
1. Stage of cutting steel sheet material
According to the drawings of each part produced by the design department, each part is cut out with a CNC cutting machine, such as beam webs, reinforcement plates, standard small accessories and so on.
2. Connect side beams, welding kingpins
At this time, the main beam is basically formed, only the side beams are welded to form the frame structure. And the traction pin traction plate is welded to the position required in the contract, the welding process is required to be high, otherwise, the 4 axle excavator trailers will be skewed.
3. Opening, calibration beam, through-beam
First cut out the web of the beam to cut out U-shaped holes through which the beams can pass, and then fix the welded I-beams in parallel.

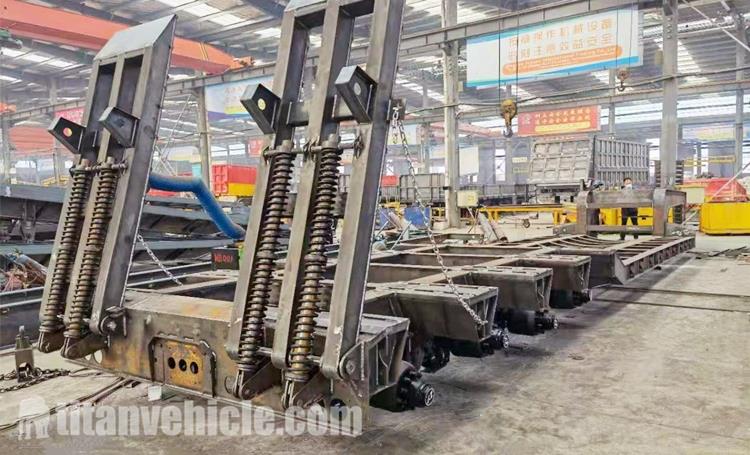

Factory Show of Excavator Trailer for Sale Frame
4. Submerged arc welding beams, beams fixed
The second step is to fix the cut web and the upper and lower wing plates to weld points, and then weld the beam by submerged arc welding.
5. Welding frame, welding suspension
At this time, the welding suspension must strictly control the size and maintain the squareness, otherwise, it will cause 4 axle excavator lowbed trailers tire wear.
6. Install the tire
It should be noted that the air pressure at the factory is generally not the standard air pressure. You must confirm it again after you buy the trailer.
Excavator Lowbed Trailer for Sale Manufacturer
