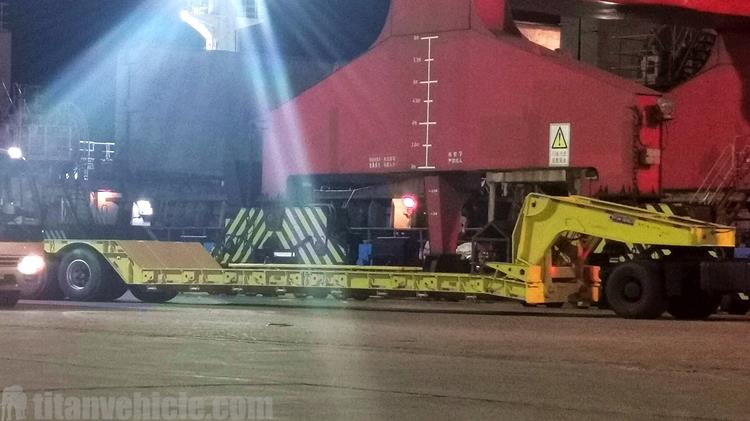

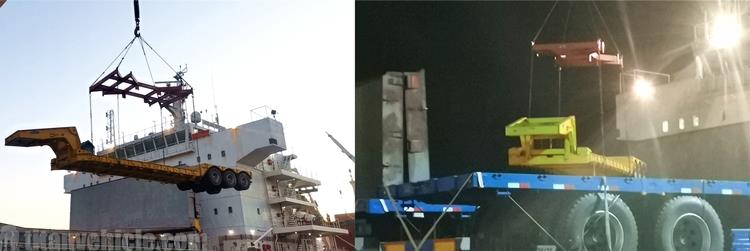

60 Ton 3 Axle Low Deck Gooseneck Trailer will be sent to Ghana Harbour.

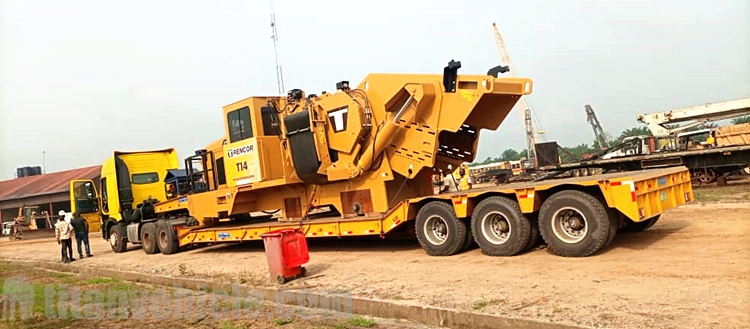

A Ghana customer bought a 3 axle low deck gooseneck trailer in 2018, the trailer is still used in indusrty. The customer shared some photos with his friend.
His friend was also satisfied with the low deck gooseneck trailer after saw his trailer. So the customer contacted our sales to ask more pics and information about the low deck gooseneck trailer. Then our sales contacted his friend and knew that his friend has no import experience. So he entrusted our customer to purchase a low deck gooseneck trailer from TITAN.

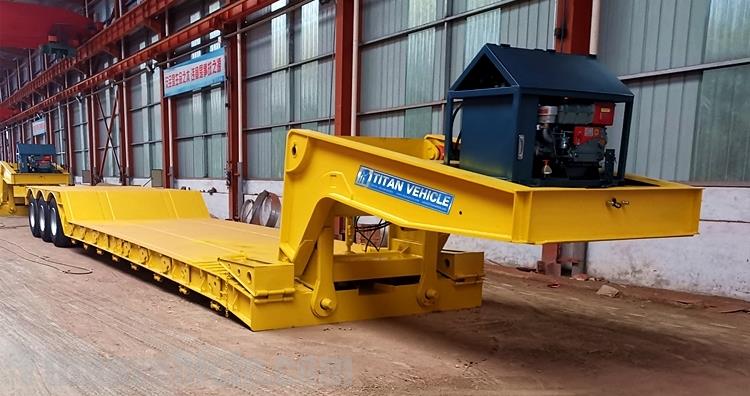

TITAN is a low deck gooseneck trailer transport manufacturer that provides machinery for our agricultural, excavating, mining, and contractor clients. A double drop gooseneck trailer is often referred to as a "detach," because it has a gooseneck that detaches and moves away from the trailer's lower deck. This allows the load to be driven onto the trailer. This makes it simple for the detachable gooseneck drivers to secure your equipment and safely get it to the next destination.

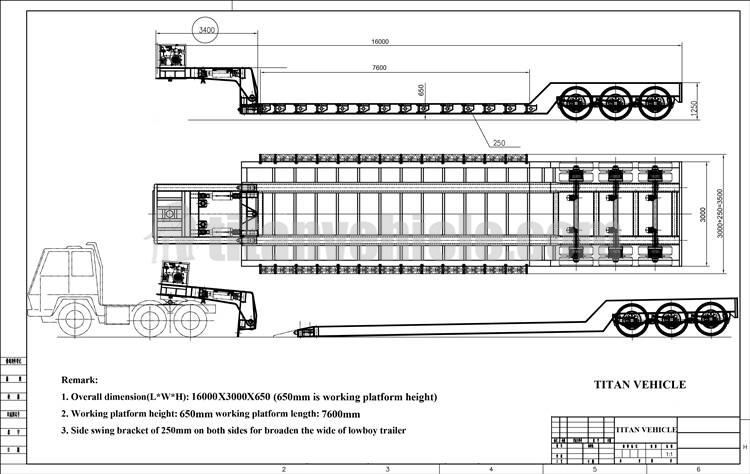

1. The lower working platform height for transport of high and voluminous loads. Low working platform: Hydraulic gooseneck lowboy trailers, easy for construction equipment. Generally the height is up to 650mm to 850mm
2. TITAN low deck gooseneck trailer with high tensile steel frame to ensure high load requirements on the bad road condition. High tensile structure steel with tensile and durable construction. Main beam adopts HG high strength steel, with high loading capacity. The yield strength of HG60 steel is ≥620Mpa, which is the yield limit of the metal material when it is yielded,the yield strength is higher, then it's much stronger. So HG60 loading capacity is 5 times more than the trailer which is built by Q345 steel. Because the yield strenghth of Q345 steel is just 345Mpa.
3. Main beam adopts submerged arc welding technology, that ensure the smooth, sturdy welding seams and avoid welding-opening problems. And also improve the loading capacity of the low deck gooseneck trailer.
4. Main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm. That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.
5. Side beam adopts “H” steel, height is 300mm, width is 140mm, and its thickness is 8/6/8mm. The durable design avoid the side beam to have the deformation.
6. Side support’s thickness is 6mm, the distance of the side support is only 450mm. The side support firmly connect the main beam and side beam to improve the whole vehicle’s loading capacity, prevent the working platform to have cave the deformation.
7. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
8. The suspension width is 120mm, thickness is 10mm, and rotation pin of suspension we use 70mm. Ensure its have high loading capacity, and increase its capacity to twisting forces, shock, bump.
9. Polyurethane paint, with long service lift, and avoid the vehicle get rust.
10. World famous brand spare part, ensure high quality and save costs.
11. 250mm side swing bracket on the both sides to increase the overall width of the trailer.
12. To meet your transport needs and your local regulations, we can customize different configuration hydraulic low deck gooseneck trailer for you.

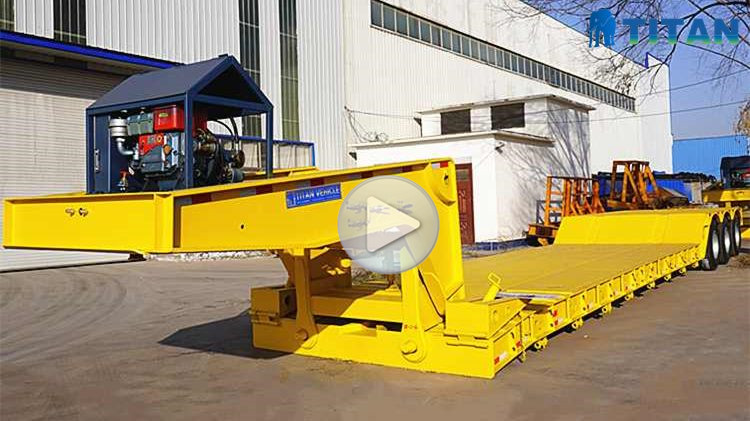

Through the video you can learn the details, testing process of the low deck gooseneck trailer.
