Tri Axle 60 Ton Fence Cargo Truck Trailer will be sent to Sudan
Sudan customers found us through Alibaba and wanted to order a batch of tri axle fence cargo truck trailers. Later, I learned that the customer was very concerned about the delivery date, the customer terminated the cooperation with the previous supplier because of the delivery date.
Of course, after many investigations, the customer finally chose TITAN. Of course, the sales manager Sunny said that TITAN's delivery time customers don't have to worry about it. We will ensure the normal delivery of fence truck trailer.
TITAN ship nearly 150 units side wall semi trailers and fence cargo truck trailers to Sudan every year. Our Semi trailers are very popular in Sudan. The side boards of this model fence truck trailer is very high and can carry more bulk cargo. Customers say that we are the most professional manufacturer.
Tri Axle 60 Ton Fence Cargo Trailer for Sale in Sudan
Tare Weight: About 8.3T
Dimension(mm): 13000x2500x3490mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Trailer Sides: 600-2000mm, or box type sides
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

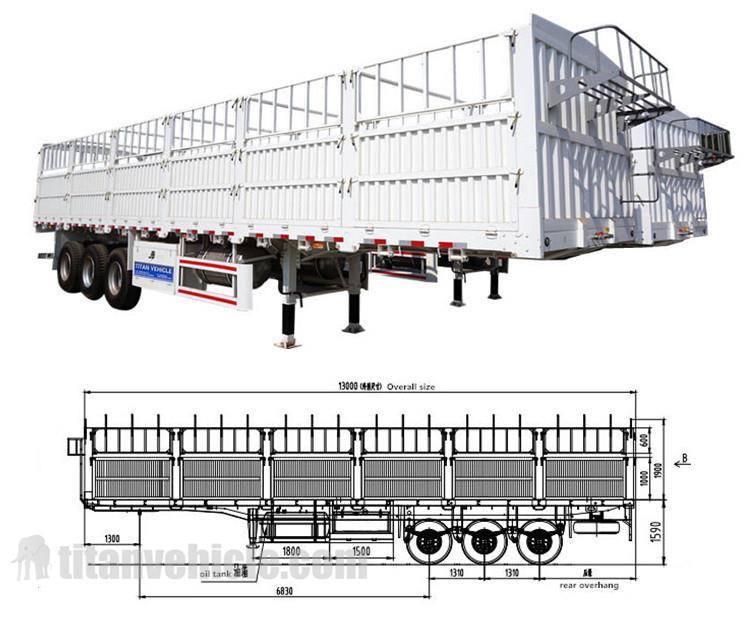

Drawing of Tri Axle 60 Ton Fence Cargo Truck Trailer
1. The 60 ton fence cargo trailer model and fence structure design process is combined with the user's cargo category, reasonable design, to fully reduce the weight of the carriage under load conditions, the structure is simple and applicable, and it is convenient to disassemble, reduce investment costs for users, and create more profit value.
2. The frame adopts a space frame structure formed by welding longitudinal beams and integral through cross beams. It can balance the strength, rigidity, and toughness of the frame, with strong bearing capacity and no deformation.
3. It adopts a new type of suspension system with high strength and strong impact resistance. The load of each axle is balanced, and the system tie rod angle is reasonably designed to reduce the friction slip distance between the tire and the ground and effectively reduce tire wear during frequent bumps. Under the same road conditions and load capacity, fuel consumption per 100 kilometers can be reduced by more than 1.2 liters.

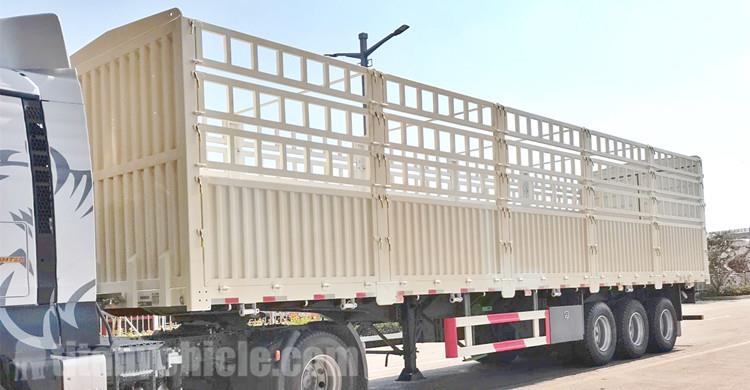

Tri Axle 60 Ton Fence Cargo Truck Trailer for Sale in Sudan
4. Imported brake pads and implanted wear alarm device. Effectively guarantee the braking performance of the vehicle during operation.
5. The service life of the TITAN tri axle fence truck trailer brake can reach 1.5 million kilometers in 10 years. Brake discs containing alloy elements, anti-cracking, anti-wear and high temperature resistance.
6. The use of low temperature resistant brake air pipe makes driving safer. The 3 axle 60 ton fence cargo semi trailer wiring harness uses 7-core wiring harness, without any grounding treatment, the lamp can work normally, the use failure rate is low, and it does not need to be replaced for life.

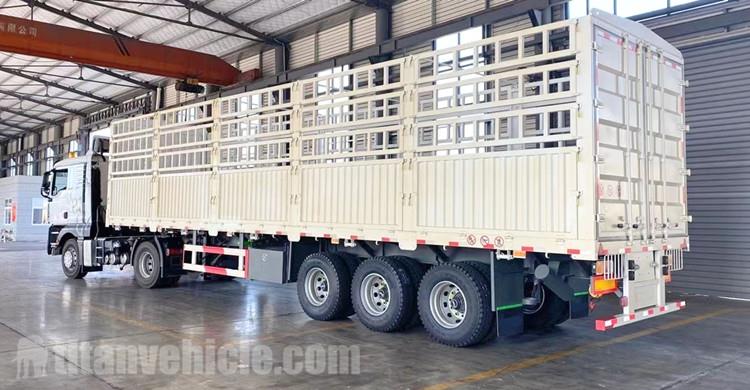

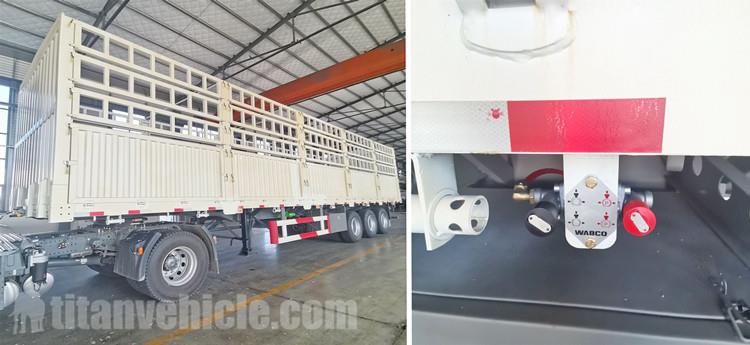

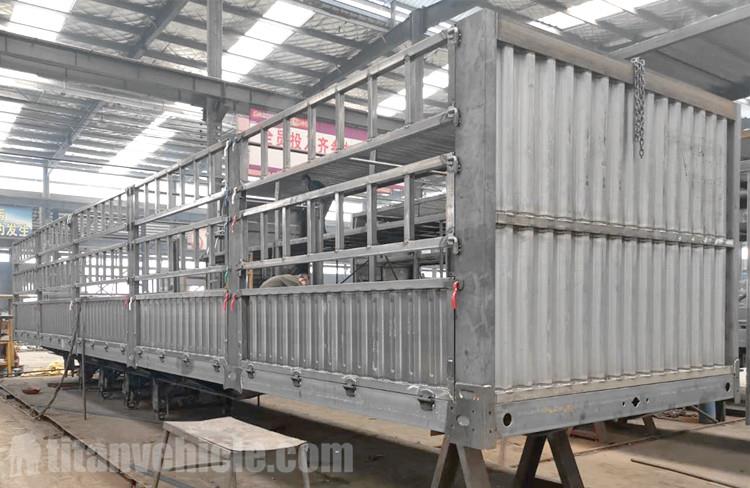

Tri Axle 60 Ton Fence Cargo Truck Trailer in TITAN Factory
