The length of the spoiler is at least 30 meters, so the above mode of transport cannot be used in mountainous areas. What should we do? The wind vane conversion tractor that specializes in transporting wind turbines can solve the mountainous transportation problem of wind turbine blades. It's different from "putting" on the windmill blade adapter trailer. This mode of transport is similar to having a large sword in your hand, allowing the blades to rise and fall. Move left and right in different directions, to avoid different obstacles on the mountain road to meet the needs of wind blade transportation.
On the fixed base of the propellers, low center of gravity ensures safety
The spoiler converter is placed backwards to make the length of this spoiler trailer shorter, which is convenient for driving in mountainous areas; The operation of dedicated personnel is conducive to improving safety.

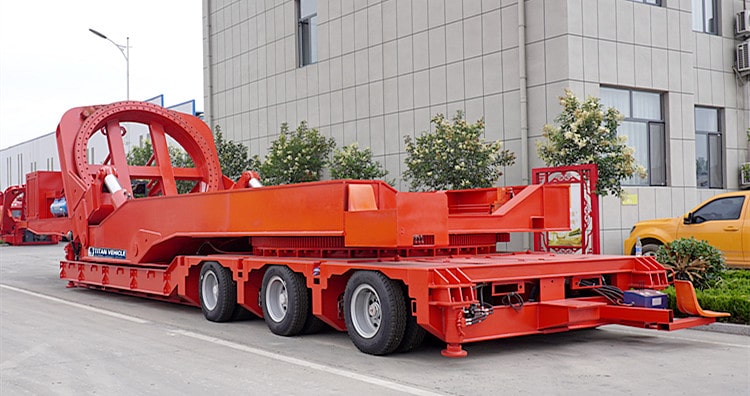

Different from ordinary spoiler conversion trailer, this spoiler conversion trailer has a very short length, this is also to meet that the vehicle can run normally on mountain roads. You can think of it as a crane, with the walker at the bottom and the turret at the top. The spoiler is like the boom of this crane.
Wind Blade Adapter Trailer for Sale

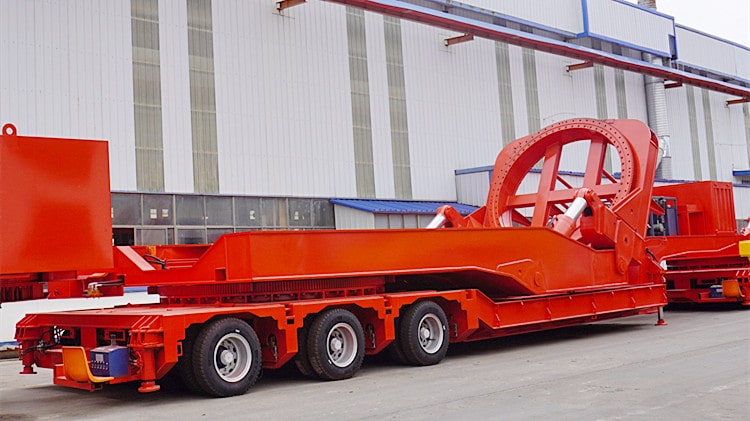

The spoiler to be transported is fixed to the vehicle with bolts, and the spoiler and base are firmly integrated. During transportation, the propeller can move up and down, left and right, which is not dangerous. The vertical displacement of the platform is made possible by the oil cylinders arranged on both sides, which can achieve a lifting range of 0-60 degrees. To ensure that the center of gravity of the spoiler is not stable when it is displaced, the back of the base can prevent counterweights to achieve this. For overall vehicle balance, counterweights can be flexibly added according to the weight of the spoiler. The windmill blade adapter trailer is equipped with tire size 275/70R22.5, the purpose is to reduce the whole wind blade trailer height, not only more convenient when loading and unloading, the lowering height also ensures the stability of the wind blade trailer in the process. operating process.
Wind Blade Adapter Trailer for Sale
Inspired by cranes, air conditioning improves comfort

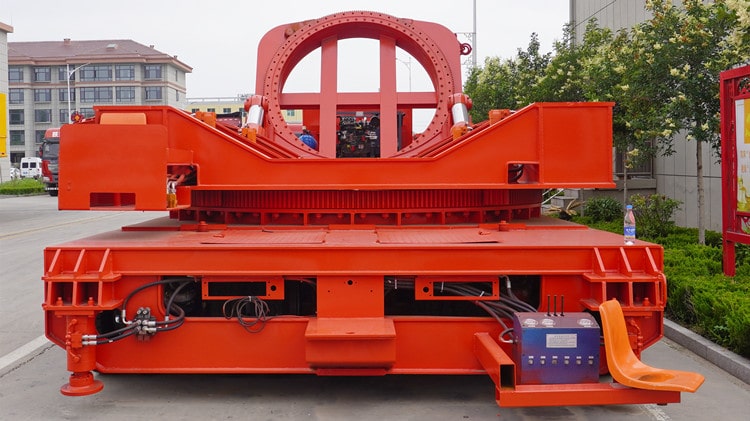

The turret is fixed on the trailer, and the hydraulic motor drives the fixed gear under the turret to realize the rotation of the entire platform. Theoretically, the turret can rotate 360 degrees.
With such a long blade, if the force of the wind in front is terrible, if it is raised high, it is likely to overturn the means of transport. To solve this problem, the base can rotate along the axis of the blade according to the premise of satisfying the lifting requirement, so that the windward side of the blade is always on the side with the smallest area.

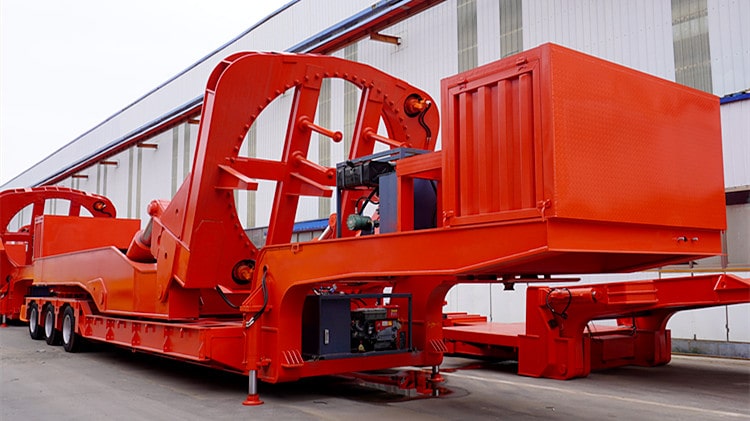

A diesel engine is mounted on the spoiler converter trailer, and the hydraulic pump is directly connected to the crankshaft providing power to the upper part.
The square weld oil tank is used to store hydraulic oil and can accommodate all heat dissipation capabilities, so there is no need to install a radiator. The upper part comes with a battery and fuel tank, and the pipes are arranged in a dizzying manner. It would be better if it could be straightened out. The hydraulic motor performs the rotation of the turret and the fuel tank supplies grain to the diesel engine. The entire upper part is operated by a dedicated person, and the operating principle is basically the same as that of a crane.
Wind Blade Adapter Trailer for Sale
1. The speed of the hydraulic power unit should not be too high during starting to avoid damage to the transmission system due to too large instantaneous torque.
2. Operate the hydraulic valve lever slowly and steadily when turning and lifting, do not push the lever towards the end to add oil. The turret was not rotated continuously to reduce the vibration of the propellers.
3. When turning and lifting, the speed should be slow and the operation should be even. Pay attention to ensure safety.
4. Try to avoid turning on roads with severe inclines to prevent accidents.
5. Vehicle should be at low speed and constant speed, reduce the brake frequently, to reduce the vibration of the propeller.
6. Avoid using when the wind is more than 8m/s.
7. The flat slab installation has the benefit of reducing wind resistance and reducing height.
8. When blade rotation is required, the height of the windmill blade adapter trailer should be lowered, and the rear end of the telescopic support post should be used as an auxiliary support.
