Different Parameters, Different Price. Price Reference Only.
100T Folding Gooseneck Trailer is widely used for transporting construction machines no matter they are with tires of crawlers or not.
Folding gooseneck trailer is a kind of front-loading trailer, different from the RGN trailer, you can load the trailer from the front of the lowbed trailer(could be flatbed trailer) but no need to dismantle the gooseneck from the trailer body. It is widely used for transporting construction machines no matter they are with tires of crawlers or not.
Lowbed trailer with a foldable neck makes you move construction machines easily even without crane’s lifting. When unhooking from the prime mover, the semi trailer’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on. It is one of the popular front loading trailers, another one is detachable gooseneck trailer.
100 Ton Gooseneck Trailer For Sale In India
100 Ton Gooseneck Trailer For Sale In India
100 Ton Gooseneck Trailer For Sale In India

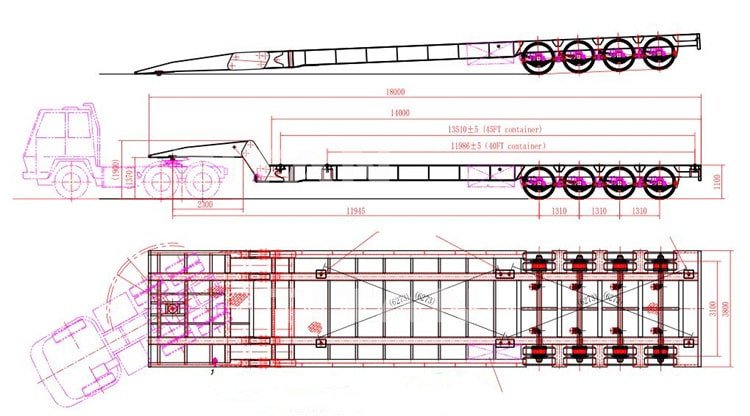

Dimension: 18000mm x 3800mm x 1800mm
Working platform: 14000*3800MM
Loading capacity: 100 TONS.4 AXLES,16TONS.
Gooseneck: hydraulic folding gooseneck.
Side hook for chain or belt
Checkered plate with 20 mm squre bar on ramps
Twist locks :6 units for 40/45 ft container
Axle: 4 Axle
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
1. The lower working platform height for the transport of high and voluminous loads.
2. TITAN lowboy trailer is with high tensile structure steel with tensile and durable construction.
3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.
4. The loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.
5. The suspension ensures it has high loading capacity, and increase its capacity to twisting forces, shock, bump.
6. World famous brand spare part, ensure high quality and save costs.
