150 Ton Gooseneck Trailer
150 Ton Gooseneck Trailer

150 Ton Gooseneck Trailer

Different Parameters, Different Price. Price Reference Only.



TITAN gooseneck lowboy trailers can make the 2/3/4/6 axles lowboy trailers, with the capacity of 40/50/60/80/100/120 ton. We also can provide optional solutions for your transport requirements.

SKU:
MPN:
Brand:

Product Description:

TITAN detachable gooseneck lowboy trailers for transport excavator and construction equipment, large machinery transportation.

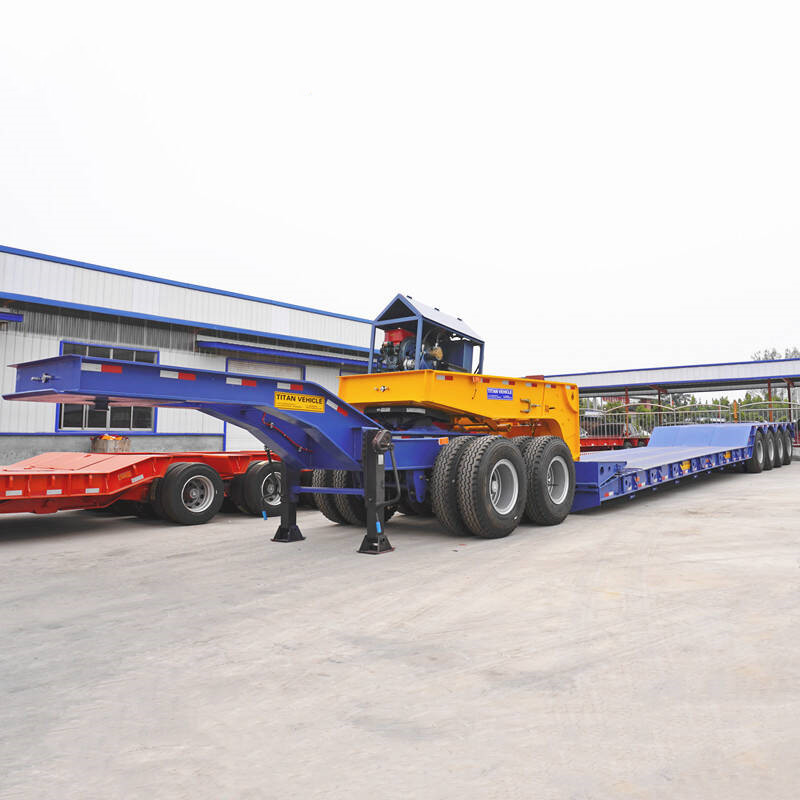

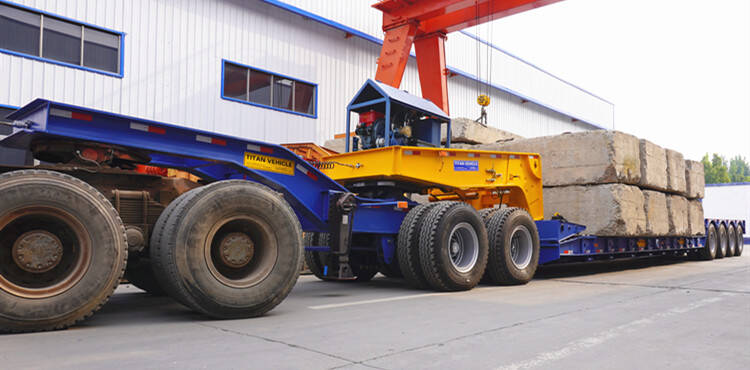

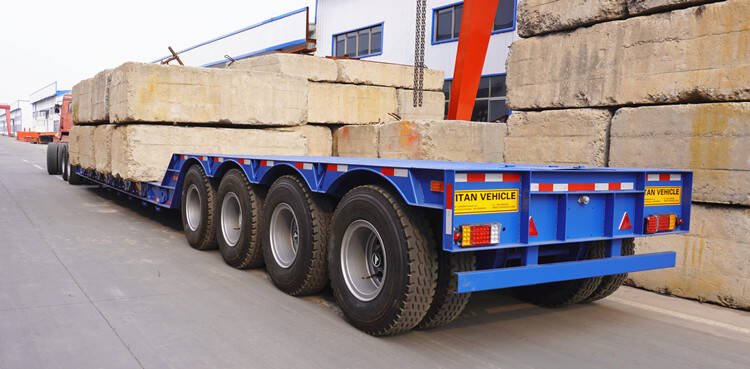

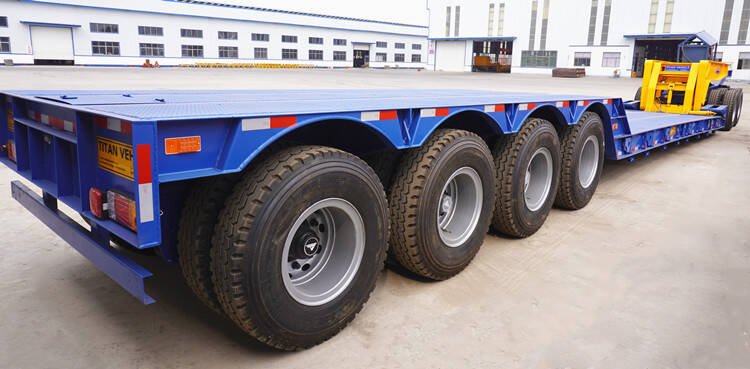

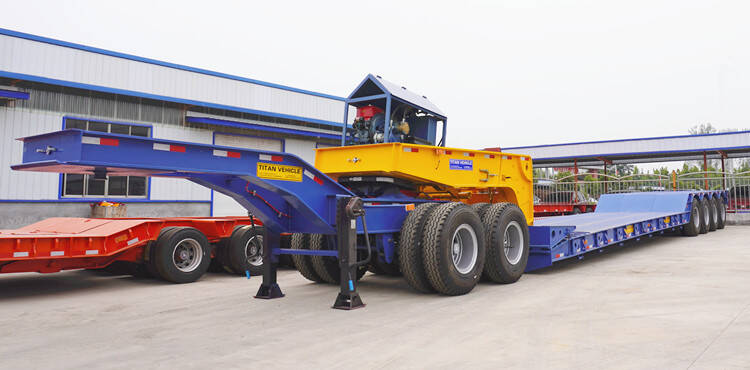

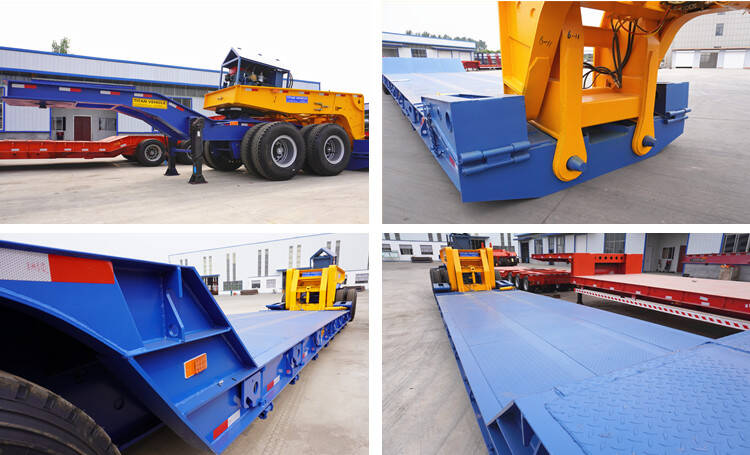

4 axle 150 ton lowboy with dolly trailer main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN removable gooseneck lowboy trailer adopts reinforced the gooseneck and upper and lower plate by double layer.

TITAN can make the 2/3/4 axles lowboy trailers, with the capacity of 60/80/100/120 ton. To meet your transport needs and your local regulations, we can customize different configuration removable detachable gooseneck lowboy for you.

150 Ton Gooseneck Trailer For Sale In Algeria

150 Ton Gooseneck Trailer For Sale In Algeria

150 Ton Gooseneck Trailer For Sale In Algeria

150 Ton Gooseneck Trailer For Sale In Algeria

150 Ton Gooseneck Trailer For Sale In Algeria

150 Ton Gooseneck Trailer For Sale In Algeria

150 Ton Gooseneck Trailer For Sale In Algeria

150 Ton Gooseneck Trailer For Sale In Algeria

150 Ton Gooseneck Trailer For Sale In Algeria

150 Ton Gooseneck Trailer For Sale In Algeria



Specification:

Overall dimension:17900mm * 2500+250*2mm *2200mm(platform 800mm)

Loading capacity:  150 ton

Axles:4 axles with 2 axles dolly

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust



Advantage:

1. The lower working platform height for the transport of high and voluminous loads.

2. TITAN lowboy trailer is with high tensile structure steel with tensile and durable construction.

3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.

4. The loading ramps are made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

5. The suspension ensure its have high loading capacity, and increase its capacity to twisting forces, shock, bump.

6. World famous brand spare part, ensure high quality and save costs.
