TITAN gooseneck lowboy trailers can make the 2/3/4/6 axles lowboy trailers, with the capacity of 40/50/60/80/100/120 ton. We also can provide optional solutions for your transport requirements.
TITAN hydraulic gooseneck lowboy trailers for transport excavator and construction equipment, large machinery transportation.
Due to the low ground clearance and low longitudinal beam height of rgn lowboy trailer, the load-bearing surface is 300-400mm lower than that of the normal concave-center removable lowboy semi-trailer, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.
TITAN hydraulic system has undergone five major system upgrades in the ten-year production process, and now the hydraulic system has very good stability and stability The customer only needs regular maintenance. It can be used for ten years.
TITAN can make the 2/3/4 axles lowboy trailers, with the capacity of 60/80/100/120 ton. To meet your transport needs and your local regulations, we can customize different configuration removable detachable gooseneck lowboy for you.

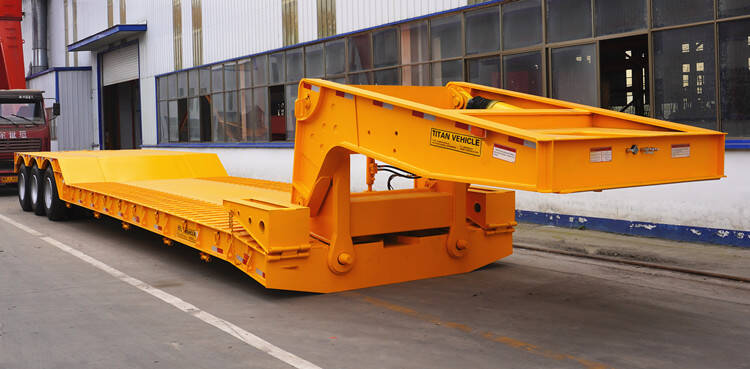

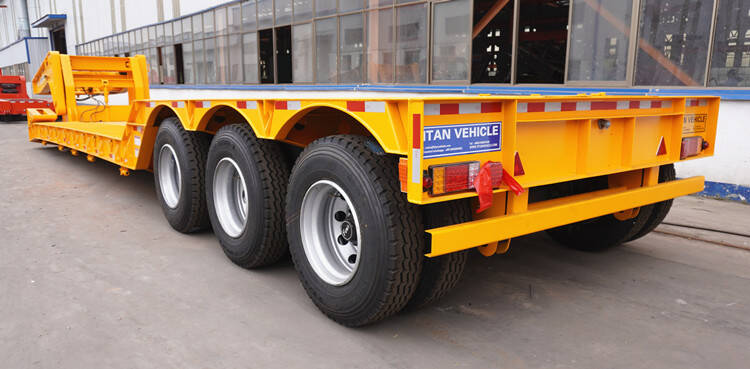

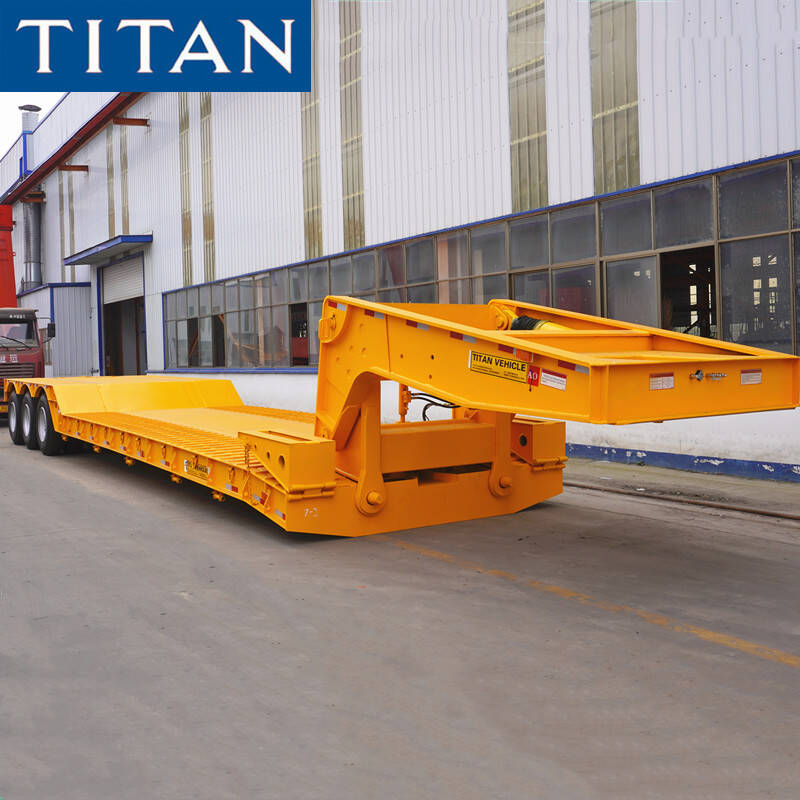

3 Axle 70 Ton Lowboy Trailer For Sale In Uruguay
3 Axle 70 Ton Lowboy Trailer For Sale In Uruguay
3 Axle 70 Ton Lowboy Trailer For Sale In Uruguay

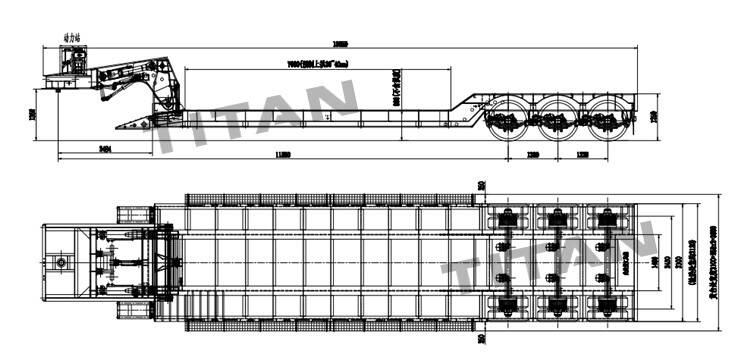

Overall dimension：15650mm*3100mm*2200mm(platform 800mm)
Loading capacity: 70 ton
Axles：3 axles
Suspension：Heavy duty mechanical suspension
Tire：12 units
King pin：90#
Landing gear：JOST
Brake system: WABCO valve
Electrical system: 24V, LED lights
1. The lower working platform height for the transport of high and voluminous loads.
2. TITAN lowboy trailer is with high tensile structure steel with tensile and durable construction.
3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.

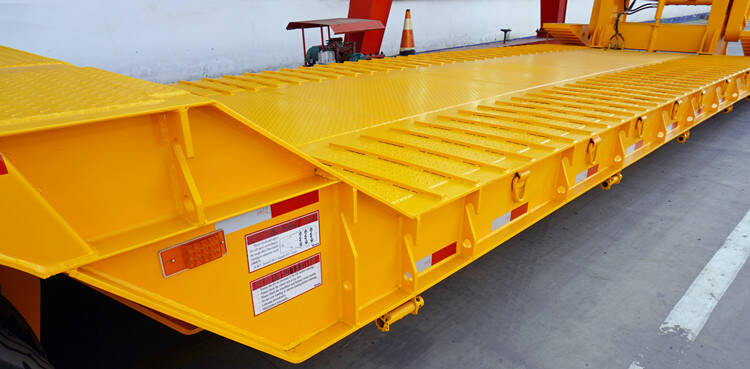

4. The loading ramps are made by high strength steel, with high loading capacity, will not happen to the deformation when carrying heavy equipment.
5. The suspension ensures it have high loading capacity, and increase its capacity to twisting forces, shock, bump.
6. World famous brand spare part, ensure high quality and save costs.
