3 lines 6 axles detachable gooseneck trailer with the capacity of 130 ton. TITAN can customize different configuration hydraulic removable detachable gooseneck trailers for you.
TITAN detachable gooseneck trailers for transport excavator and construction equipment, large machinery transportation .We can make the 2/3/4 axles detachable gooseneck trailers, with the capacity of 60/80/100/120 ton.
3 Lines 6 Axles Detachable Gooseneck Trailer with the capacity of 130 ton. To meet your transport needs and your local regulations, we can customize different detachable gooseneck trailer for you.

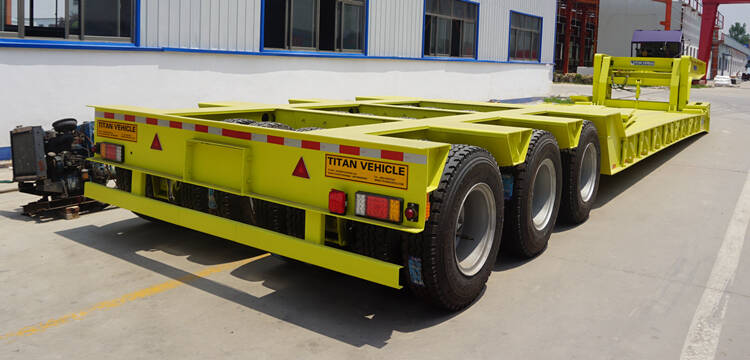

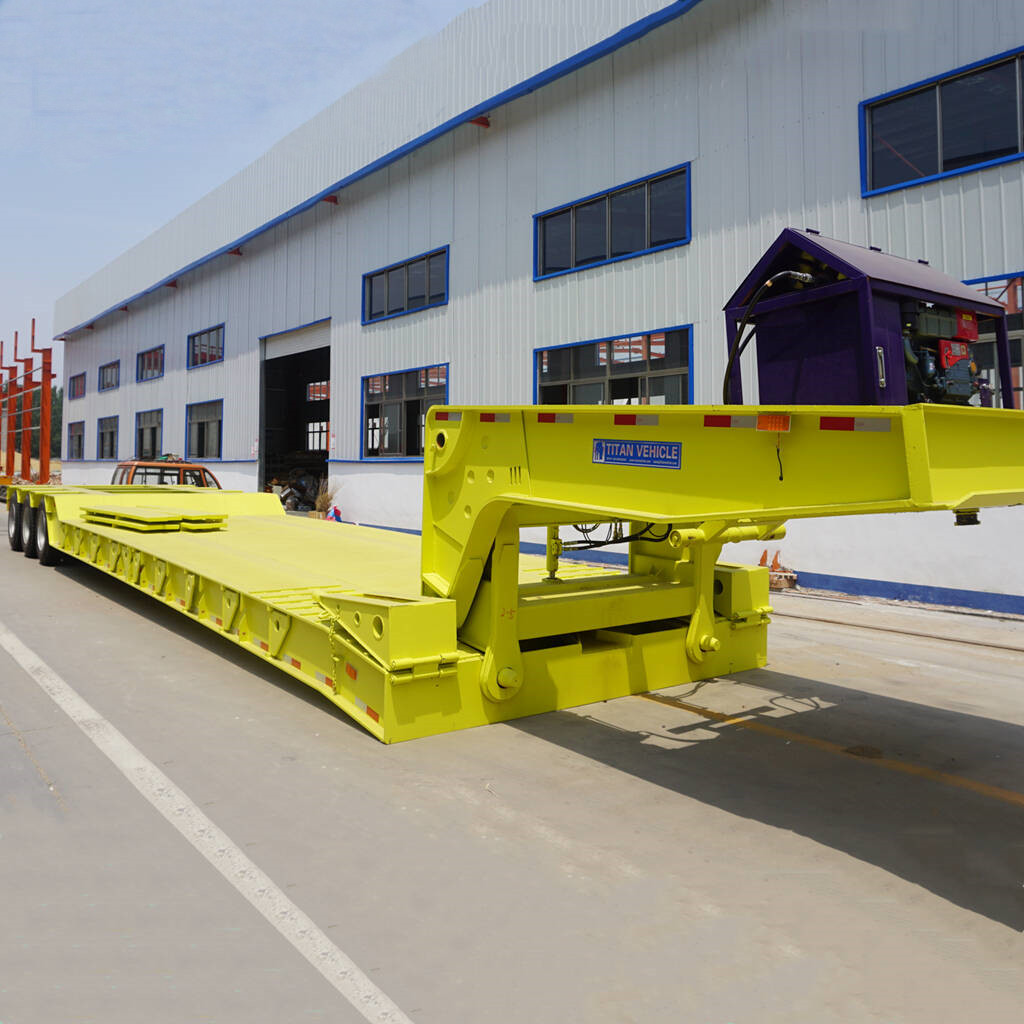

3 Lines 6 Axles Detachable Gooseneck Trailer for Sale in Angola
3 Lines 6 Axles Detachable Gooseneck Trailer for Sale in Angola
3 Lines 6 Axles Detachable Gooseneck Trailer for Sale in Angola
Overall dimension：17000mm * 3000mm *2500mm
Loading capacity(T): 50-150T
Axle: 3 line 6 axle

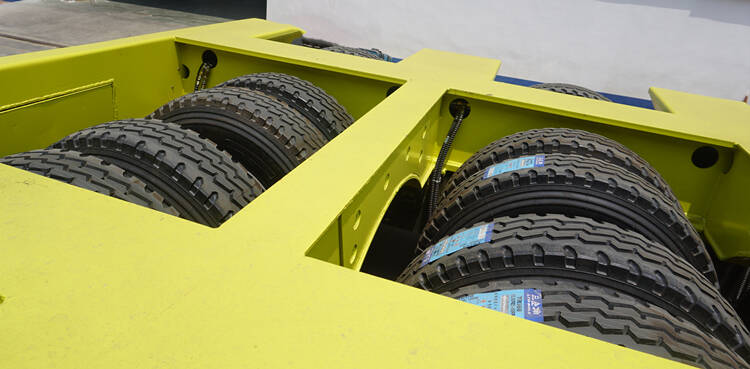

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

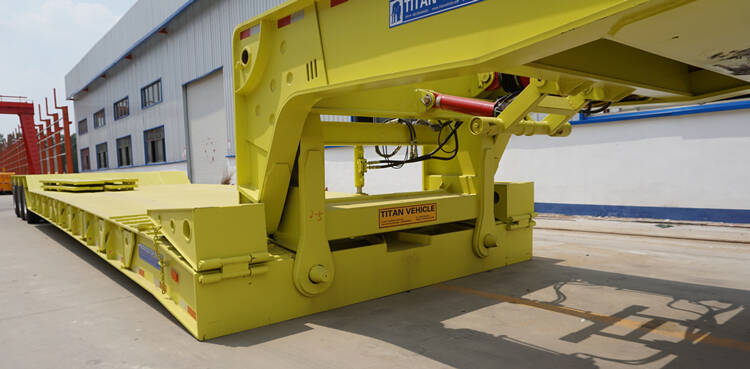

Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
1. The lower working platform height for the transport of high and voluminous loads.
2. TITAN lowboy trailer is with high tensile structure steel with tensile and durable construction.
3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.
4. The loading ramps are made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
5. The suspension ensure its have high loading capacity, and increase its capacity to twisting forces, shock, bump.
6. World famous brand spare part, ensure high quality and save costs.

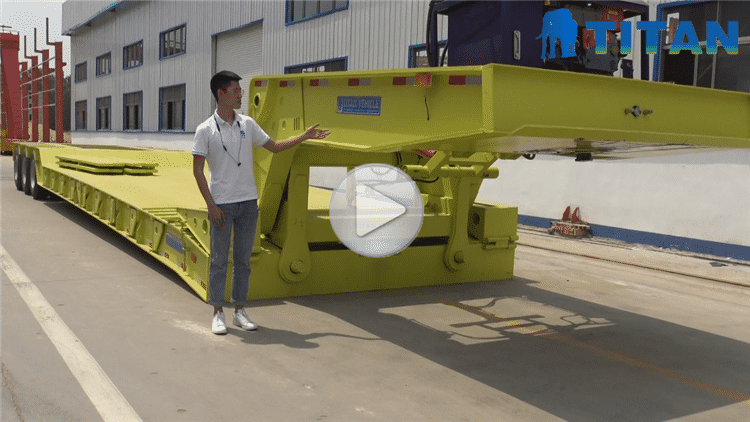

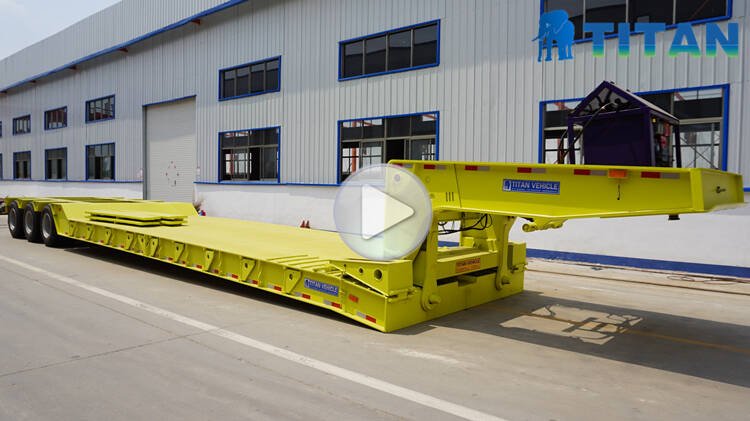

3 Line 6 Axle 150 Ton Lowboy Trailer details display video
Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.
