Extendable Windblade Trailer is a kind of wind blade trailers mainly used to transport wind turbine blades, with 52m, 56m, 64m parameters.
Wind blade trailers, extendable windblade trailer from China, specialized for transportation of wind energy industry components and construction of wind power stations. Extendable trailer and telescopic trailer for sale from China TITAN are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine. The stretchable telescopic beam could be 2 or 3 parts. Total length can reach up to 64 meters.

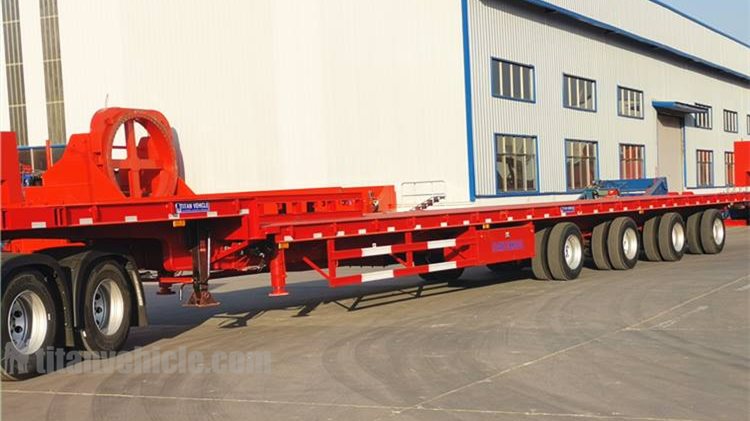

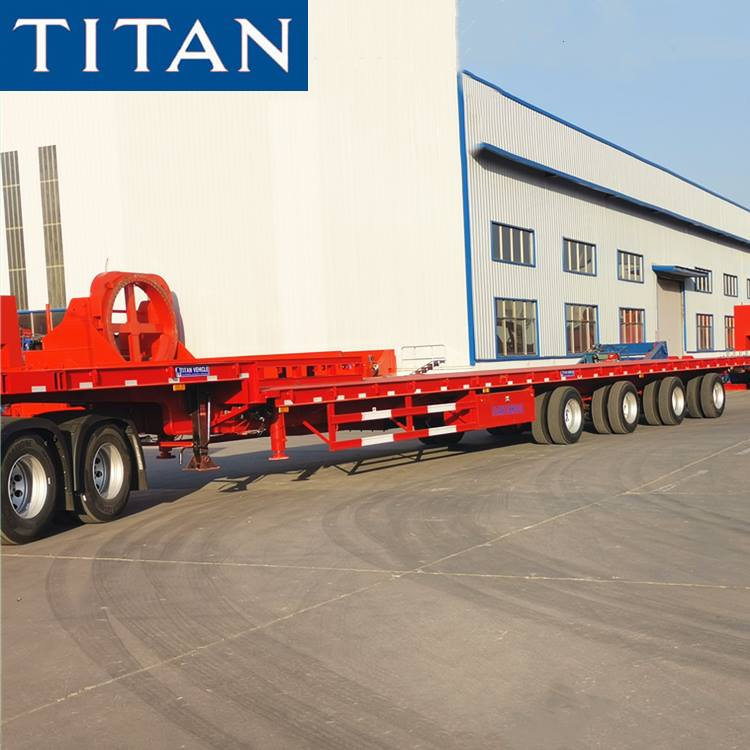

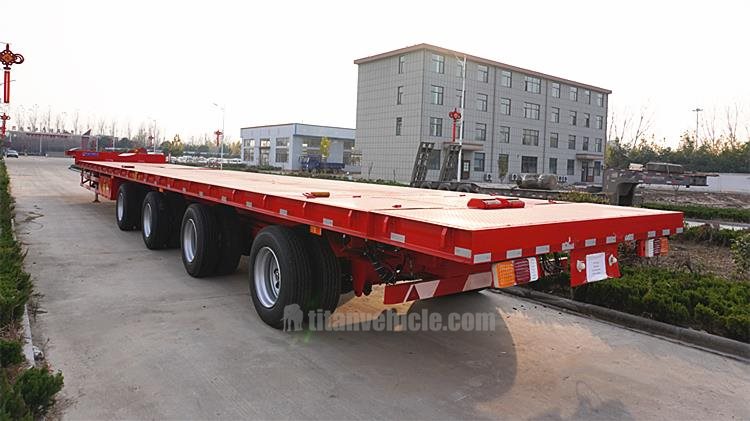

Brand: TITAN 58M 4 Axle Extendable Blades Wind Turbine Trailer
Dimension: 22,450mmX3120mmX1580mm
Total length: 61,000mm after extension
Loading capacity: 90 Ton
Platform thickness: 3 mm

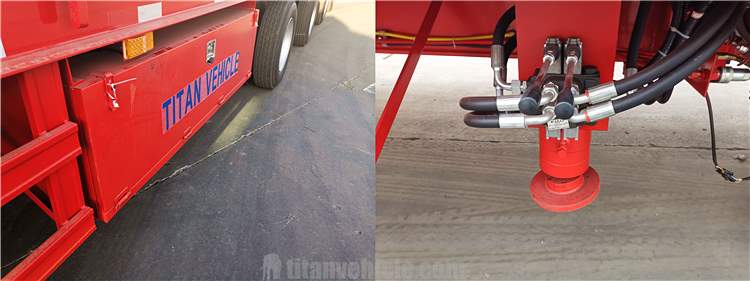

Hydraulic power station: Diesel engine
Axle: 4 axle
Suspension: Hydraulic suspension.
Tire: 16 units, Triangle brand
Braking system: WABCO emergency valve
King pin: 3.5 inch high tensile steel bolted type
Landing gear: JOST C200

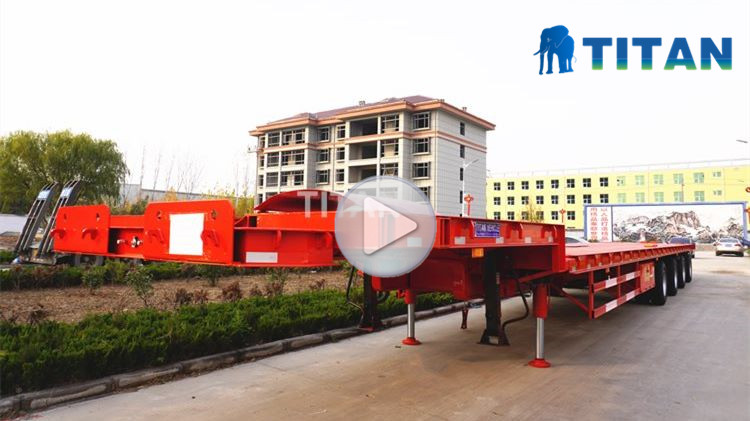

Through the video, you can know different types of 4 axle extendable windblade trailer , 52m extendable trailer , extendable trailers for blade, etc.
Please click "TITAN Wind Blade Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
