TITAN produces Extendable Wind Turbine Transport Trailer for Carrying 80 meters Wind Blade.
TITAN Extendable Modular Trailer adapts perfectly to haul 45 meters to 80 meters long windmill turbine blade transportation and long bulky goods.TITAN Extendable Modular Trailer are noted for their highly robust frames and outstanding stability of the extension beam. the high standard of the workmanship and welding process ensures easy adjustment of the extension beams.
TITAN Extendable Modular Trailer can be adjusted to fit any size or band of Turbine Blade, TITAN can provide you the customize wind blade trailer to meet your transport requirements.
Gooseneck mechanical lift (hydraulic lift pull type four-bridge hydraulic steering large blade transporter, 58 meters fulcrum, single beam pull, transport blades within 80 meters on land)
58M Extendable Wind Turbine Blade Transport Trailer For Sale
Extendable Trailers for sale
Windmill Turbine Blade Trailer

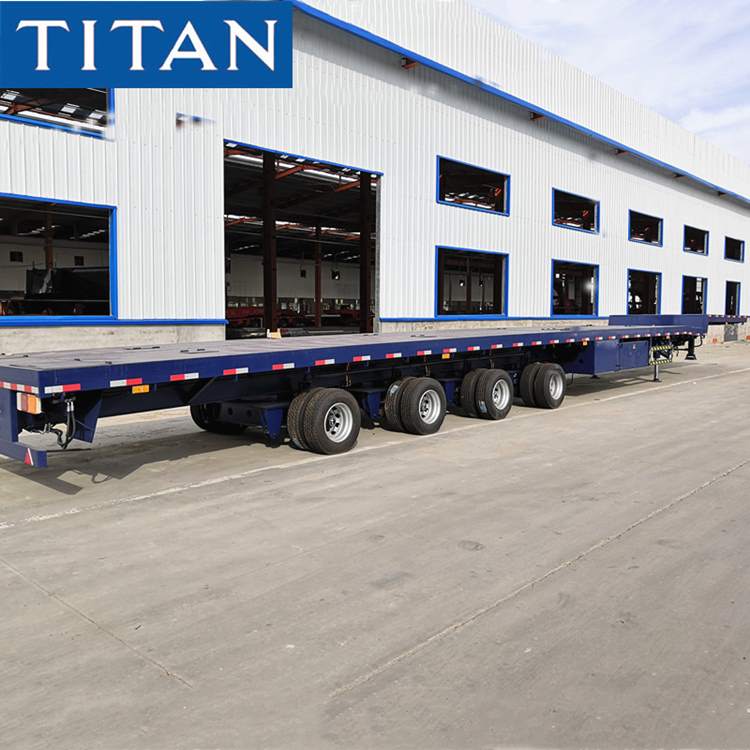

Brand: TITAN 58M 4 Axle Extendable Blades Wind Turbine Trailer
Dimension: 22,450mmX3120mmX 1580mm
Total length: 61,000mm after extension
Loading capacity: 90 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 4 axle
Suspension: Hydraulic suspension.
Tire: 16 units, Triangle brand
Braking system: WABCO emergency valve
King pin: 3.5 inch high tensile steel bolted type
Landing gear: JOST C200
1.Trailer's length from 22 meters extend to 58 meters
2.Transport the 45 meters to 80 meters Windmill Turbine Blade.
3.Loading capacity is up to 90 ton
4.Steerable axles, all wheels steering.
5.Highly robust frames and outstanding stability of the extension beam.
6.Mechanical spring suspension, air suspension, or hydraulic suspension is an option
7.Manual valve operation and wireless remote control.

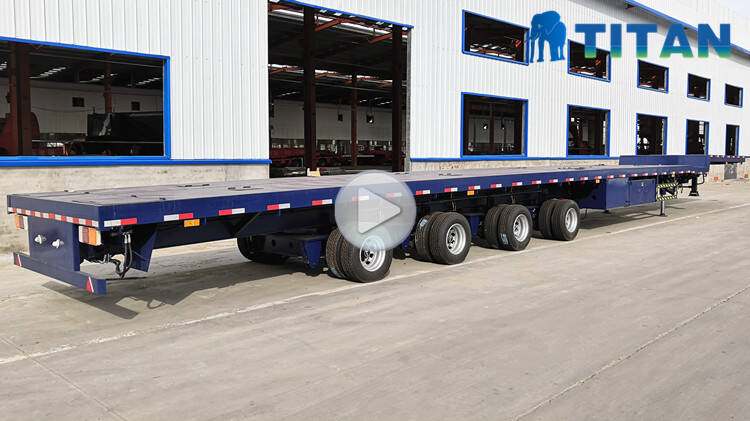

58M Extendable Blades Wind Turbine Trailer details display video
Welcome to leave your enquiry! Thank you!
We'll meet the acme of perfection to serve and provide more details, price, drawings, videos for you!
