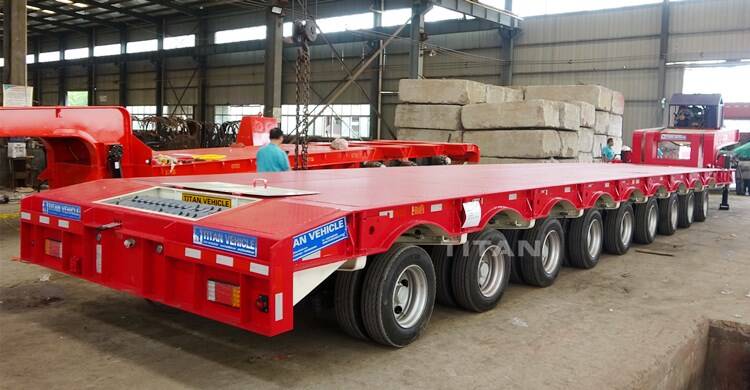

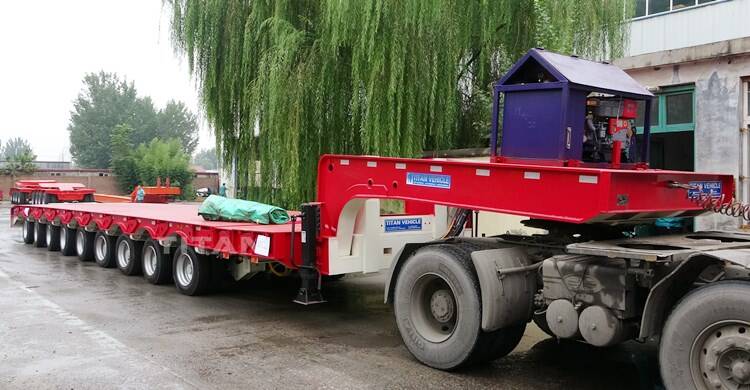

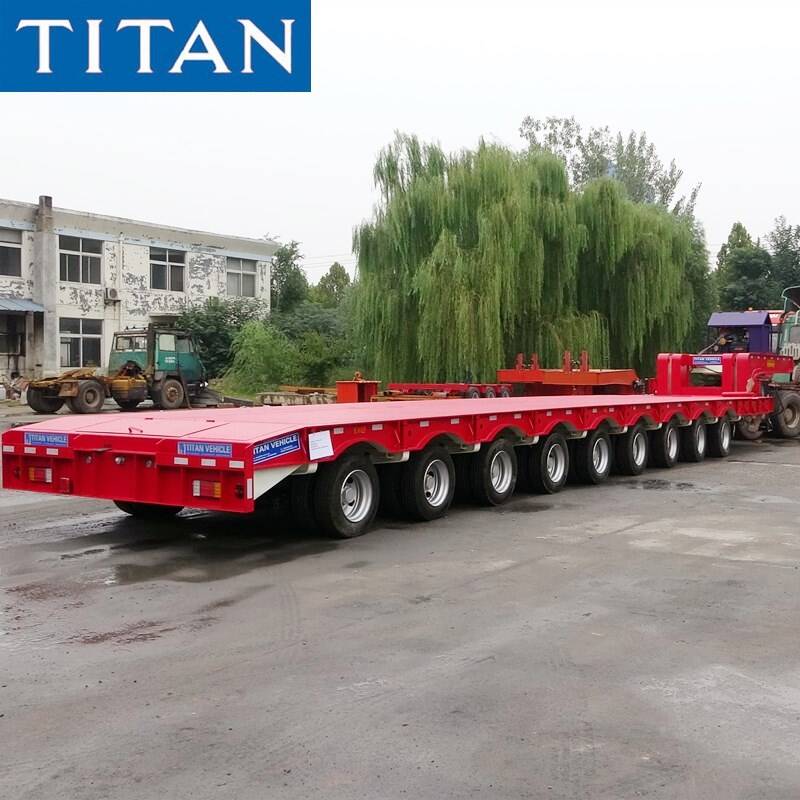

TITAN produces 9/10 Axle Extendable Low Bed Trailer for Carrying 30 meters to 35 meter wind tower.TITAN 10-axle extendable trailer have proven to be the most efficient, lightest-weight option for customers.
TITAN 9/10 axles Extendable Low Bed Trailer for Carrying Tower.TITAN Extendable Trailer is noted for their highly robust frames and outstanding stability of the extension beam.

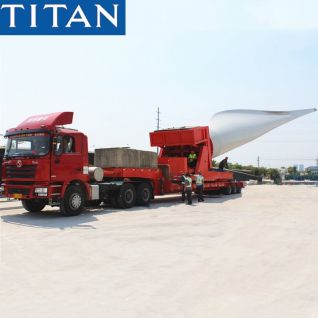

TITAN 9 axle /10 axle extendable low bed trailer uses high strength steel material to ensure the capacity, the load can be up to 60 to 150 ton payload.TITAN designs and produces Tower Section Semi Trailer for hauling 30 meters to 35 meter wind tower.
After the mounting process, the wind tower mounting plate holes are precision machines to fit perfectly no matter what band or size, greatly reducing damage to the paint on the tower section.

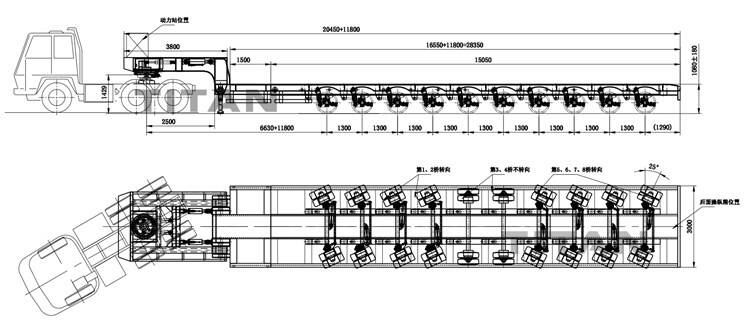

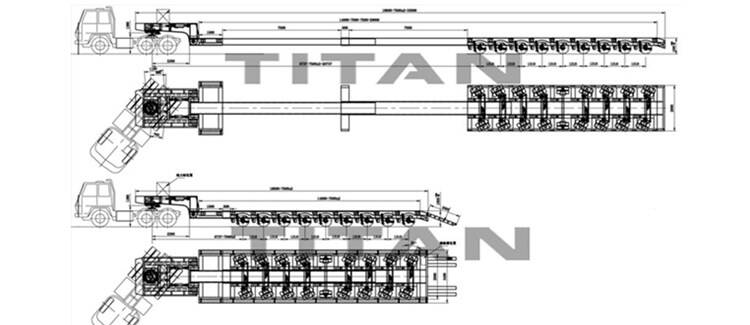

Dimension(L*W*H): 18,500mm X 2,990mm X 950mm ( closed state)
33,500mm X 2,990mm X 950mm ( extension state)
Deadweight without ramps: 28.5 Ton
Deadweight with ramps: 29.5 Ton
Frame: HG60 high strength steel frame
Loading capacity: 90 Ton
Length: 18,500mm at closed state; 33,500mm after total extended
Width: 2,990mm + 2 X 250mm side swing bracket
Height: 200mm+/-90mm
Axle: 9 Axles, one axle fixed and 8 axles steerable
Maximum steering angle: +/-25°
Tyre: 36 units, 215/75R17.5
Gooseneck: Hydraulic gooseneck

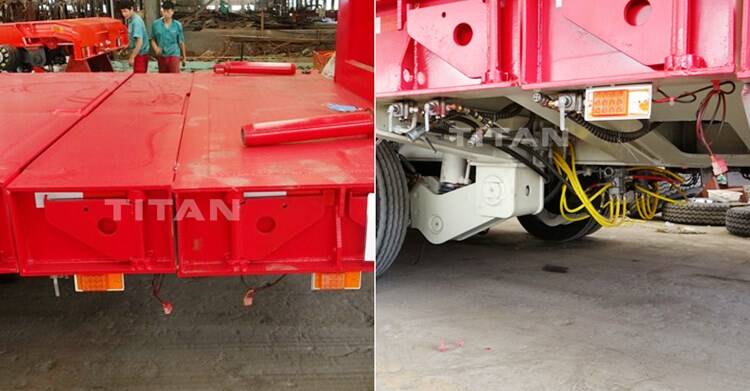

Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)
Hydraulic power station: 1 set,12Kw diesel engine
Loading Ramps: 1 set, detachable ramps
Landing gear: JOST C200
Operation 2 wireless remote control: + 1 control valve panel

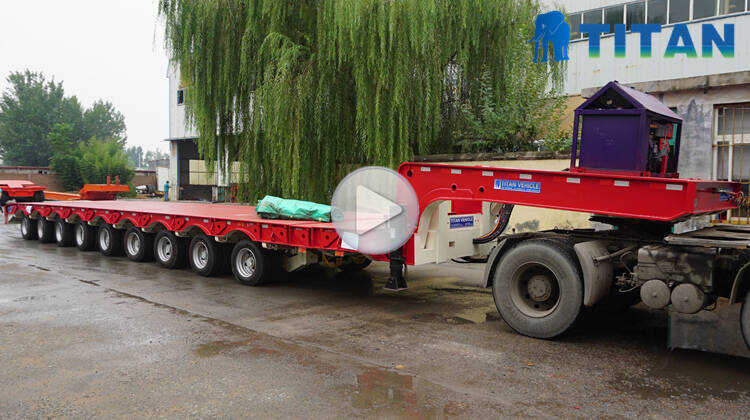

Video show:
