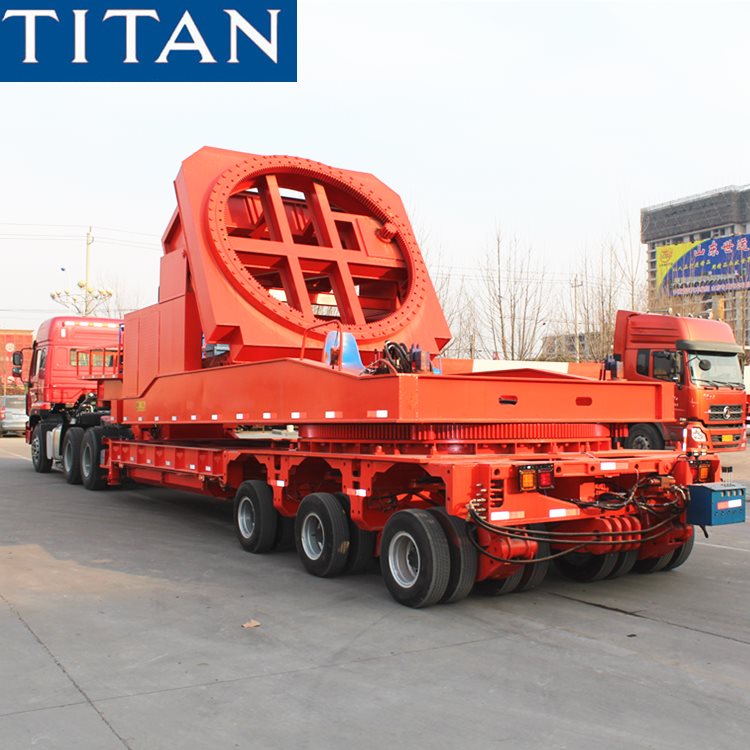

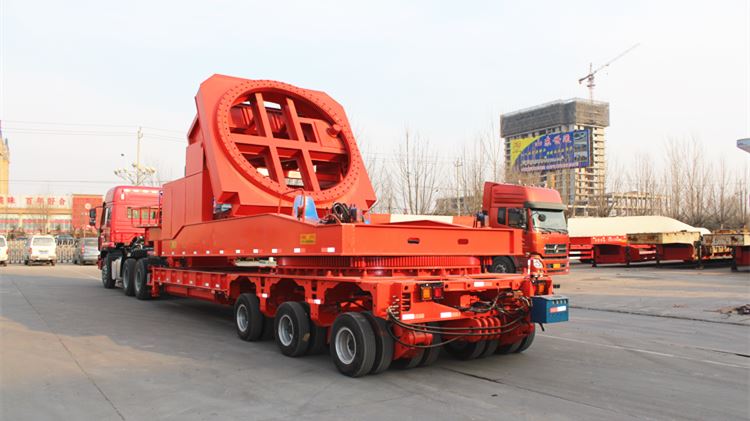

Windmill Blade Transport Tower Trailer has a tower adapter to its structure. The tower can be fixed on the two sides of adaptors.
The adaptors can be adjusted to fit the different dimension of the tower. This is what you should go for if your need revolves around transporting windmill towers.
TITAN 9th-generation Windmill Blade Transport Tower Trailer that is mounted on modular trailer. TITAN 9th-generation Rotor blade adapter for transport rotor blade, wind blades. That is best solution to avoid obstacles, such as buildings and trees effectively, especially running on steep hills or narrow winding mountainous roads.
According to different road conditions and load requirements, TITAN Windmill Blade Transport Tower Trailer can be mounted and transported on both on a pulled platform trailer combination as well as module trailer, and self propelled modules.
Windmill Blade Transport Tower Trailer can transport blades of model 115-156. It is suitable for the wind turbine blades length of 56.5-76 meters, and the longest can transport the wind blade of 80 meters.
A significant advantage of this trailer is that it is more suitable for towers of different sizes. Therefore, users are not limited to the specific type and size of the tower.
The Windmill Blade Transport Tower Trailer provides better safety measures. This is very important to the operation and therefore an important factor to consider when buying a trailer.
Windmill Blade Transport Tower Trailer
We can provide all the models you need and support customization. Please leave your inquiry if you have any questions.
Windmill Blade Transport Tower Trailer Drawing
Brand: TITAN Windmill Blade Transport Tower Trailer
Dimension: 19500mm*3400mm*4650mm
Applicable blade: 56.5m-76m
Loading capacity: 60 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 3 line units steering 6 axle
Braking system: WABCO emergency valve
King pin: 3.5 inch high tensile steel bolted type
Landing gear: JOST C200
