Windmill blade trailer adapter transports wind blades to the top of the mountain. Can running on steep hills or narrow winding mountain roads.
TITAN wind turbine blade adapter that is mounted on 3 lines 6 axles trailer. That is best solution to avoid obstacles, such as buildings and trees effectively, especially running on steep hills or narrow winding mountainous roads.
Windmill blade transport trailer can transport blades of model 121-156. It is suitable for the wind turbine blades length of 59.5-76 meters, and the longest can transport the wind blade of 80 meters. The weight of the windmill blade that can be carried is 13-23.5 tons.
The special wind turbine blade transportation trailer can lift the blades through hydraulic control and rotate itself 360 degrees during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.), which can greatly reduce the blades. The total length of the transport windmill trailer body can improve the curve passing performance.

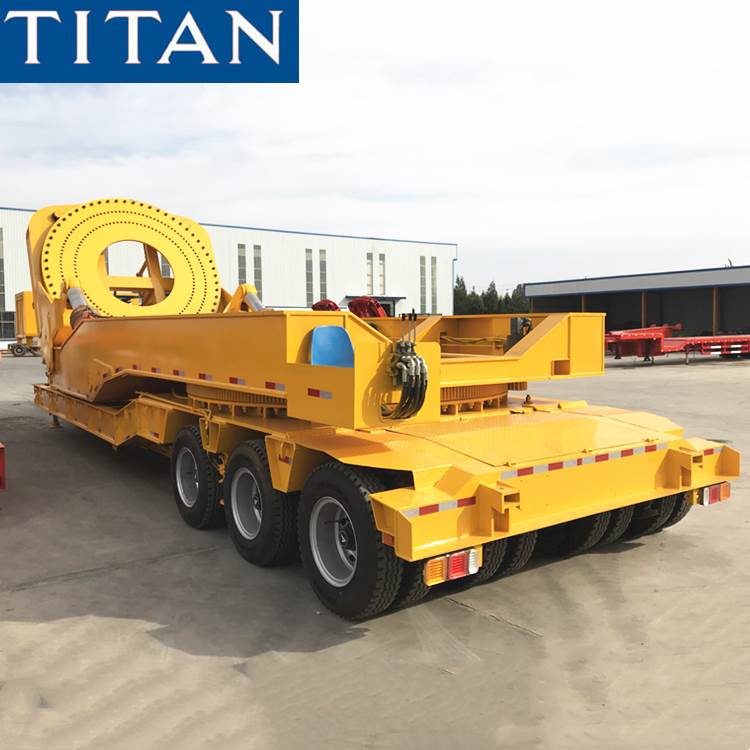

Adapter trailer for 80m wind turbine blade transportation
Wind blade adapter that is mounted on 3 lines 6 axles semi-trailer
Wind turbine blade transport adapter trailer details
Brand: TITAN Adapter trailer for 80m wind turbine blade transportation
Dimension: 16250mm*3700mm*5000mm
Loading capacity: 23.5 Tons
Axle: 3 lines 6 axles
Max rotation angle: 360°
Adapter Trailer for 80m wind turbine blade transportation details display video
