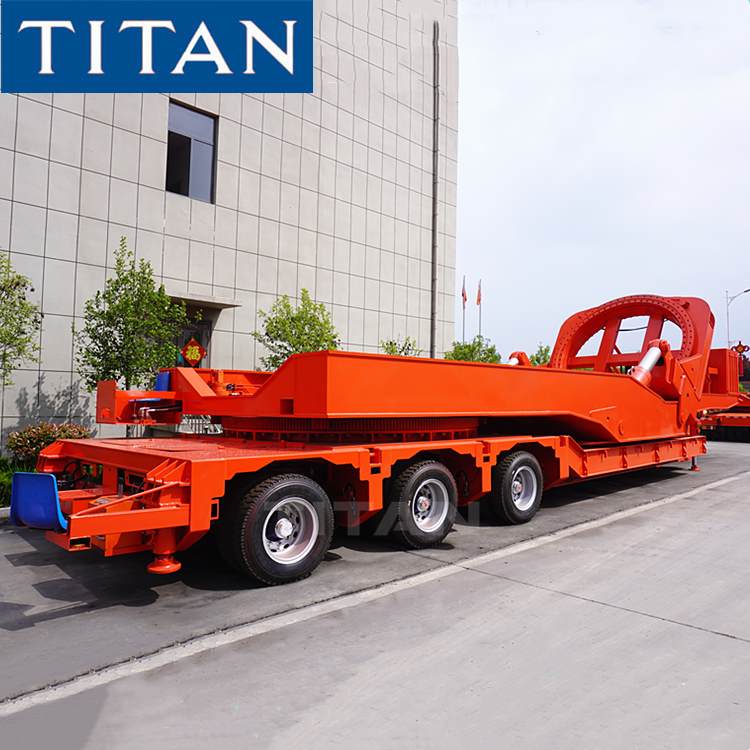

Windmill Rotor Blade Lifter
Windmill Rotor Blade Lifter

Windmill Rotor Blade Lifter

Windmill Rotor Blade Lifter can lift the wind turbine blades, it usually transport the wind turbine blades to the top of the mountain.

Windmill Rotor Blade Lifter Product Description:

In this design structure, the turbine blades are fixed on the adapter. The special thing about this windmill rotor blade lifter trailer is that the adapter is customized for the blade. This means that it is unlikely to be used for other functions. If you only need to transport wind turbine blades, then it is the trailer you need. Although it is usually made of the best materials with sufficient yield strength, its customized blade design may not make it suitable for other types of loads.

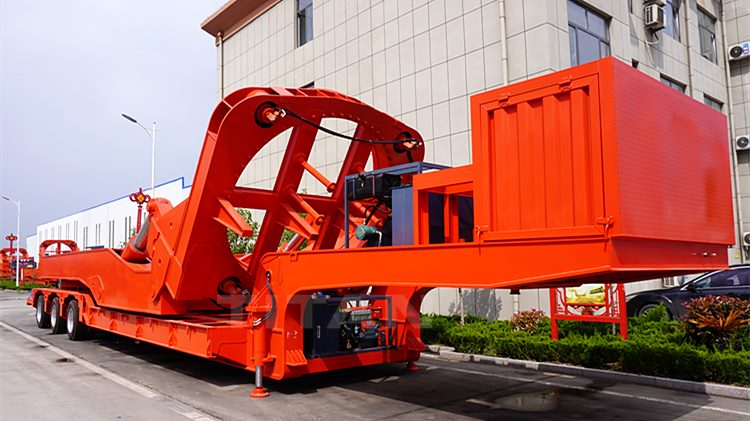

Windmill Rotor Blade Lifter for Sale in Vietnam

Windmill Rotor Blade Lifter for Sale in Vietnam

Windmill Rotor Blade Lifter for Sale in Vietnam



Specification:

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation

Dimension: 16250mm*3700mm*5000mm

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles

Max rotation angle: 360°

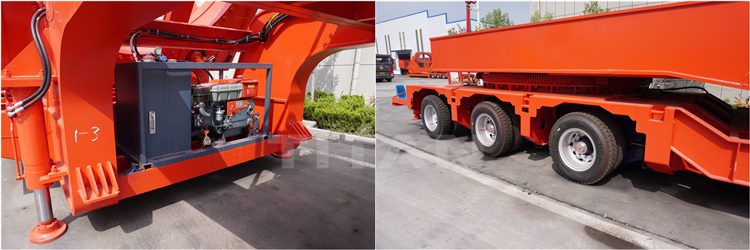

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification: 121-155 model

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16



Advantage:

1. These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.

2. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.

3. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.

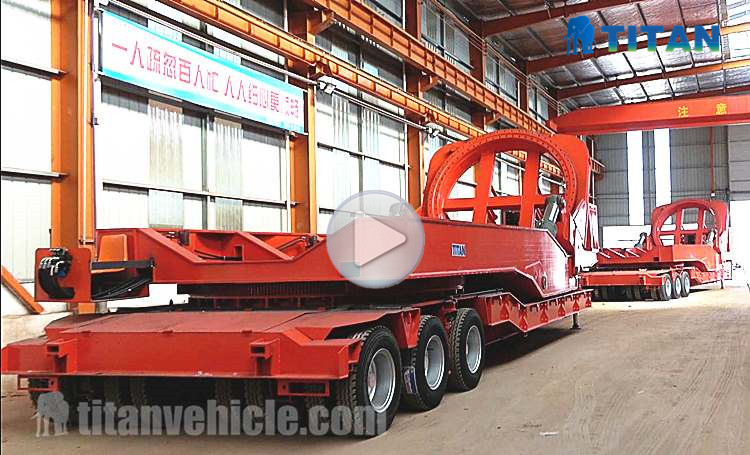

Through this video, you can learn more details about 3 line 6 axle windmill rotor blade lifter , windmill rotor blade trailer , etc.

If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
