Different Parameters, Different Price. Price Reference Only.

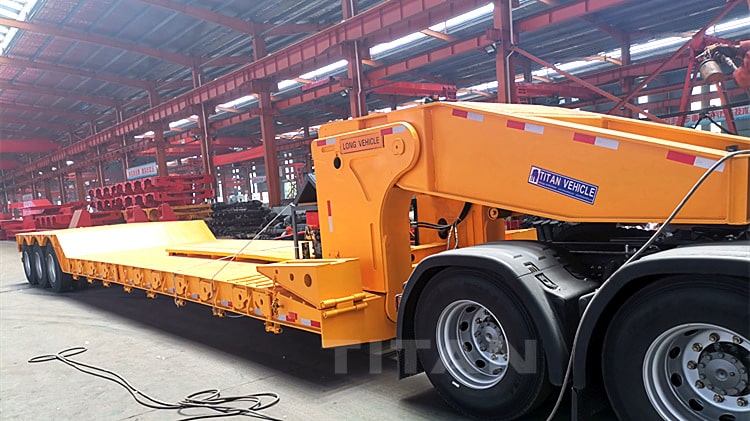

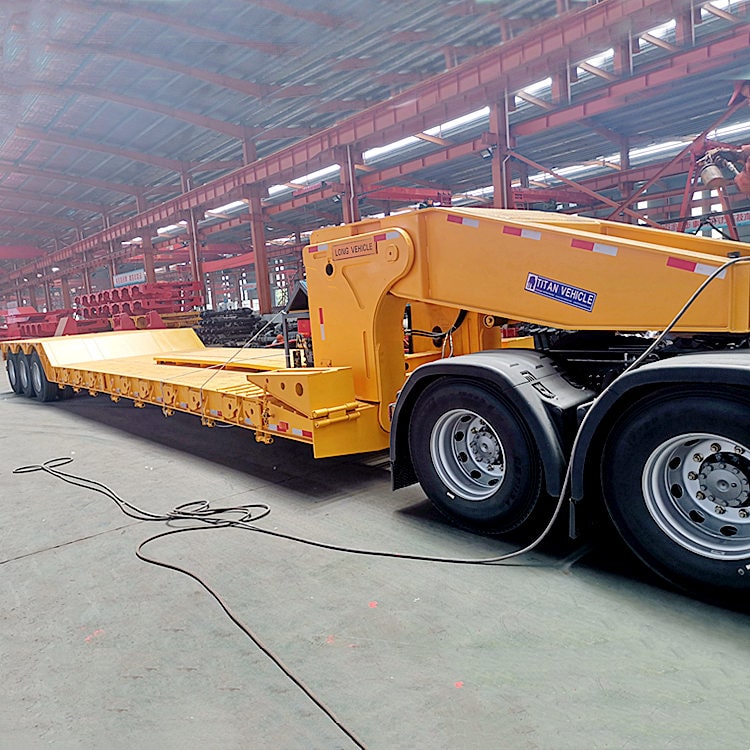

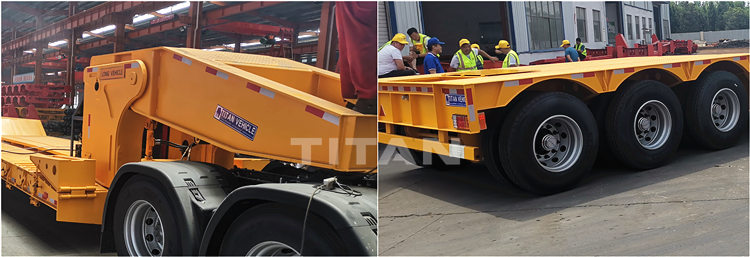

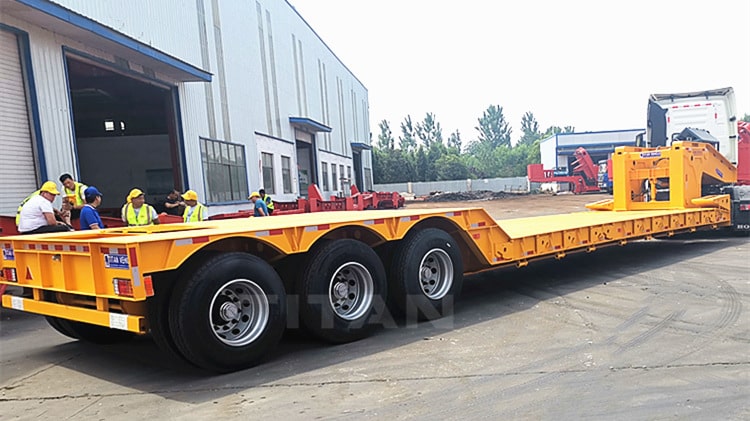

3 Axle Removable Gooseneck Trailer can be used for loading and transporting heavy machinery and equipment.
The 3 Axle Removable Gooseneck Trailer can use the lifting cylinder installed on the vehicle to support the front part of the 3 axle removable gooseneck trailer body on the ground. After the tractor is separated from the saddle of the removable gooseneck trailer, the tractor is driven away from the removable gooseneck trailer. When the tractor leaves, the front part of the removable gooseneck trailer can be placed on the ground through the lifting cylinder, and the lifting cylinder can be continuously manipulated to convert the gooseneck platform into a removable gooseneck trailer ladder, thereby solving the problem of the large rear part of the removable gooseneck trailer.
3 Axle 80 Ton Removable Gooseneck Trailer for Sale in Burundi
3 Axle 80 Ton Removable Gooseneck Trailer for Sale in Burundi
3 Axle 80 Removable Gooseneck Trailer for Sale in Burundi

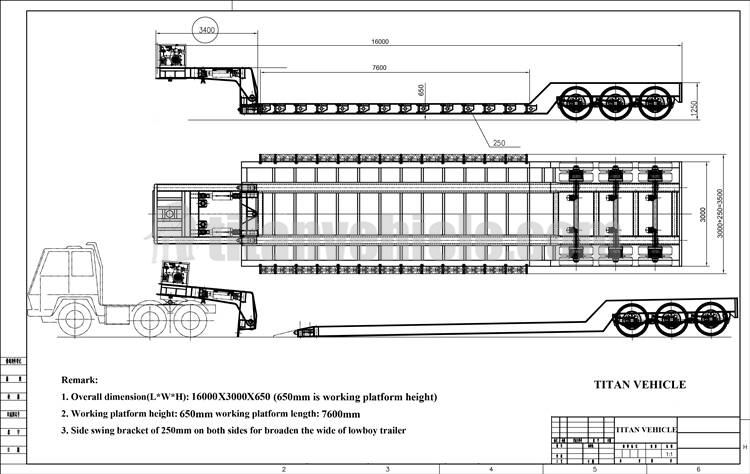

Dimension: 15800mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 3 axle
Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
1. The lower working platform height for the transport of high and voluminous loads.
2. TITAN Removable Gooseneck Trailer is with high tensile structure steel with tensile and durable construction.
3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.
4. The loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.
5. The suspension ensures its have high loading capacity, and increase its capacity to twisting forces, shock, bump.
6. World famous brand spare part, ensure high quality and save costs.

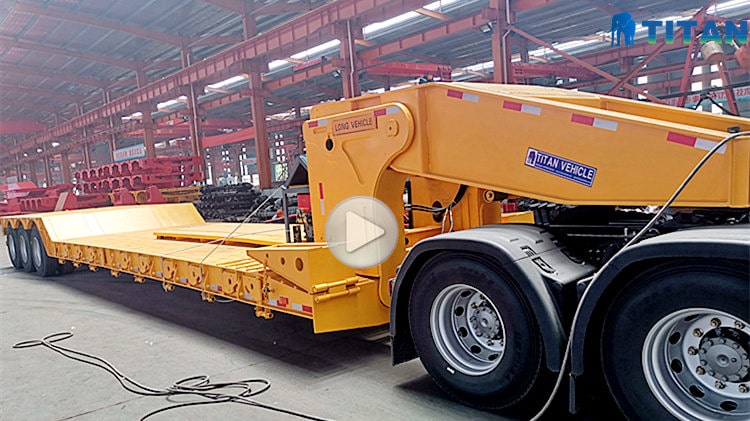

Through the video, you can know different types of detachable gooseneck trailer , 3 axle detachable gooseneck trailer for sale , hydraulic detachable gooseneck, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
