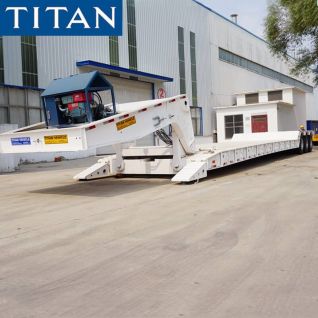

4 Line 8 Axle Lowboy Gooseneck Trailer with the capacity of 150 ton.
TITAN can customize different configuration hydraulic removable detachable gooseneck trailers for you.
TITAN 4 Line 8 Axle 150Ton Lowboy Gooseneck Trailer for transport excavator and construction equipment, large machinery transportation .
We can make the 2/3/4 axles lowboy trailers, with the capacity of 60/80/100/120 ton, to meet your transport needs and your local regulations.
TITAN can customize different configuration Hydraulic removable detachable goose neck lowboy for you.
4 Line 8 Axle 150 Ton Lowboy Gooseneck Trailer For Sale
4 line 8 axle 150 Ton gooseneck lowboy trailers
4 line 8 axle 150 Ton gooseneck trailer
4 Line 8 Axle 150 Ton lowboy Gooseneck Trailer For Sale
Overall dimension：17500mm * 3000mm *1200mm
Loading capacity(T): 150T
Axle: 4 line 8 axle
Tire: 32 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 10.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
1. The lower working platform height for the transport of high and voluminous loads.
2. TITAN lowboy trailer is with high tensile structure steel with tensile and durable construction.
3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.
4. The loading ramps are made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
5. The suspension ensure its have high loading capacity, and increase its capacity to twisting forces, shock, bump.
6. World famous brand spare part, ensure high quality and save costs.
Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.
