55m Extendible Trailer

55m Extendible Flatbed Trailer

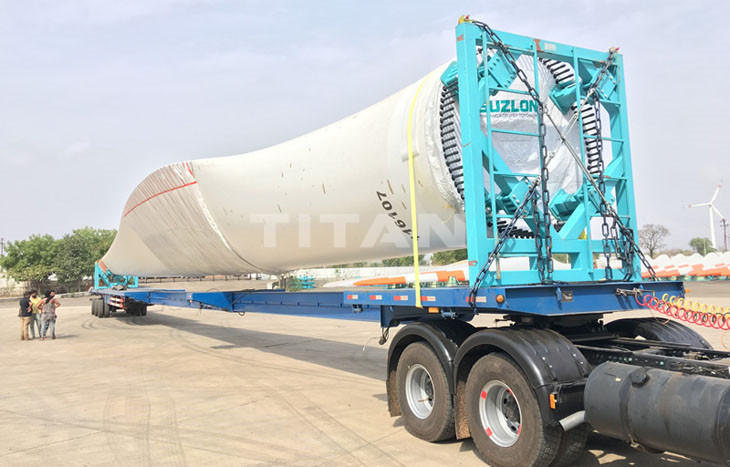

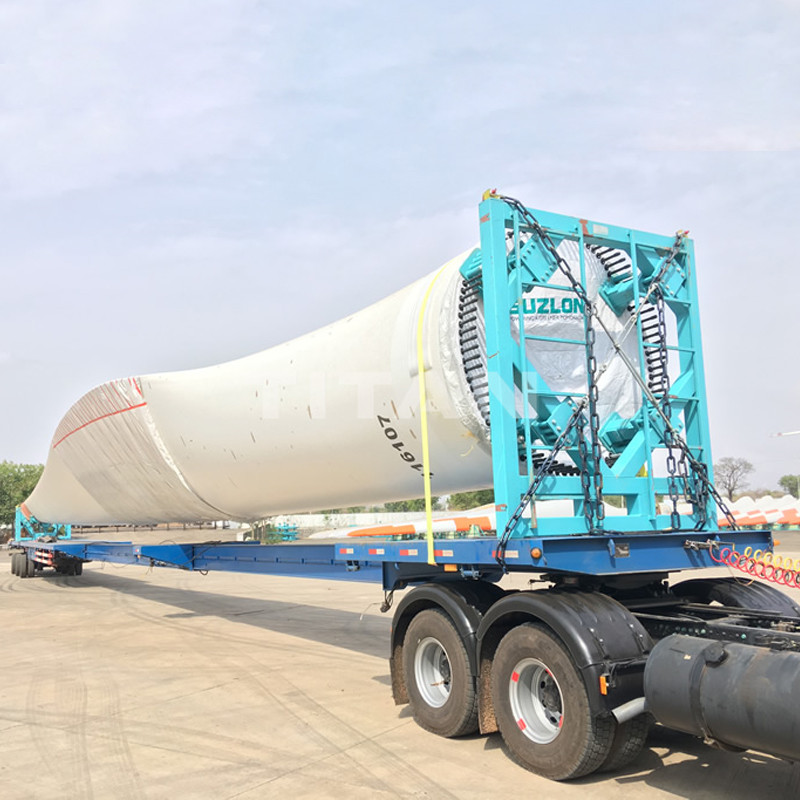

TITAN produces 50 meters long Extendible Flatbed Semi Trailer for hauling 45 meters to 80 meters long windmill turbine blade, and other long bulky goods. TITAN Extendible Semi Trailer adopts integrated turntable bolster steering is equipped with a hydraulic dual circuit forced steering system, that make sure full steering capability if one circuit should fail.TITAN Extendable semi trailer can be adjusted to fit any size or brand of turbine blade for your transportation needs.

FEATURES

• Extension length: from 21.5 meters extendable to 55 meters.

• Transport 45 meters to 80 meters long wind blades

• Loading capacity is 60 ton

• Steerable axles, all wheels steering.

• Pneumatic suspension as standard, mechanical and hydraulic axle suspension is optional.

• Manual operation and wireless remote control

SPECIFICATION

PICTURES

TECHNOLOGY

AXLE ANDSUSPENSION

TITAN EExtendible Flatbed Trailer is equipped with mechanical spring suspension as standardThe following axle systems is optional

• Air suspension

• Hydraulic steering axles

• Friction steered axles

• Turntable steering axles

EXTENDIBLE FLATBED TRAILER USAGE

The greatest strengths of TITAN Wind Blade Trailer certainly lie in its highly robust frames and th outstanding stability of extension beam. These advantages enable not only meet to legal

Boundary conditions, but also increase maneuverability and efficiency in loading and transport.

• Wind power project : wind tower segments, generators, rotor or turbine blades, hybrid towers

• Long Bulky Cargo: Long train rail, long and big tank. Long pipes
